620Watts PV Solar Panels Inmetro Certified Half Cell Perc 210mm For Residential
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | SUNWAY |
| Model Number: | SW600M10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100000 watts |
|---|---|
| Price: | $0.23/watts 100000-499999 watts |
| Packaging Details: | Pallets |
| Supply Ability: | 8000000 Kilowatt/Kilowatts per Month |
|
Detail Information |
|||
| Cell Size: | 210mmx210mm | Type: | PERC, Half Cell, All Black, HJT, TOPCON |
|---|---|---|---|
| Panel Dimensions: | 2172*1303*35 | Panel Efficiency: | 21.89 |
| Warranty: | 25 Years Warranty | Solar Cell: | Mono Perc Half Cut 210MM |
| Max. Power: | 620Watts | Vmp: | 35.26 |
| Efficiency: | 21.89 | Imp: | 17-18A |
| Frame: | 30/35MM | Junction Box: | 3 Bypass Diodes |
| Weight: | 30.5 | Glass: | 3.2mm Tempered Low Iron |
| OEM Order: | Acceptable | Certificate: | CE,TUV,Inmetro,Retie |
| Port: | Ningbo Shanghai | ||
| Highlight: | 620Watts PV Solar Panels,620Watts sunpower pv module,Inmetro Certified PV Solar Panels |
||
Product Description

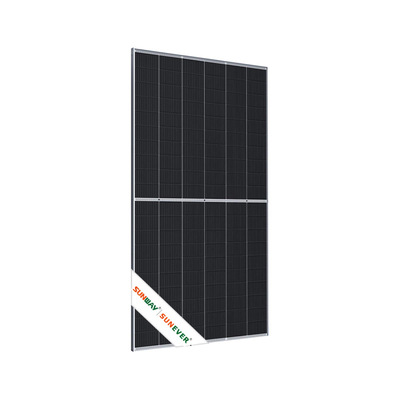

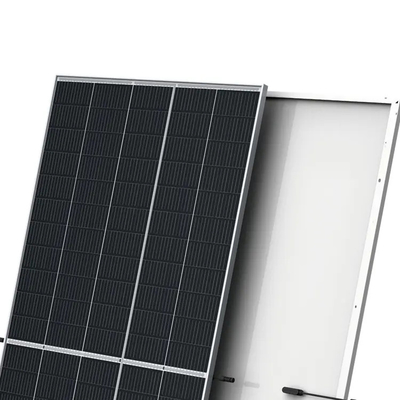

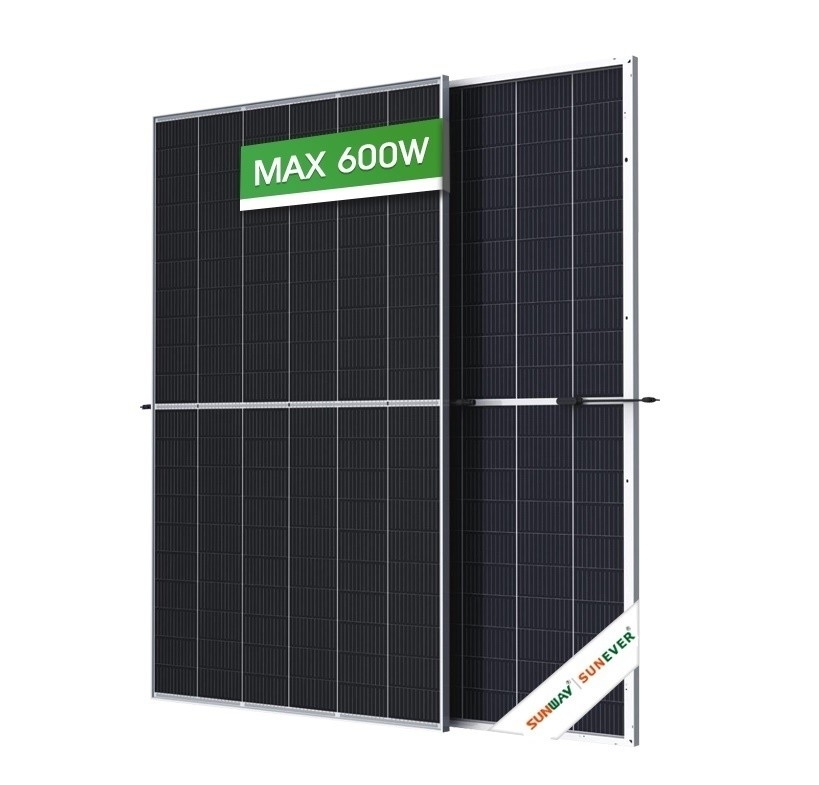

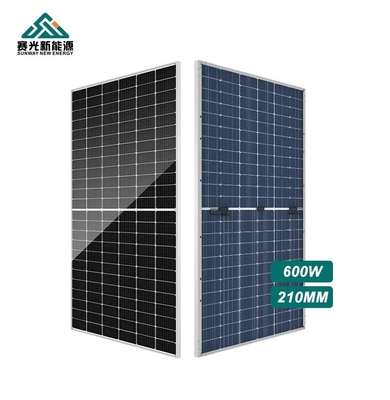

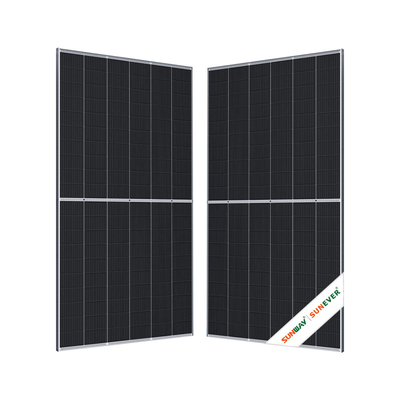

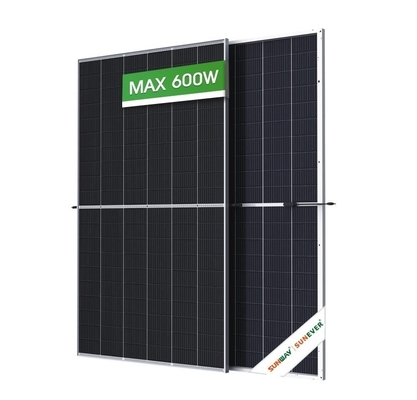

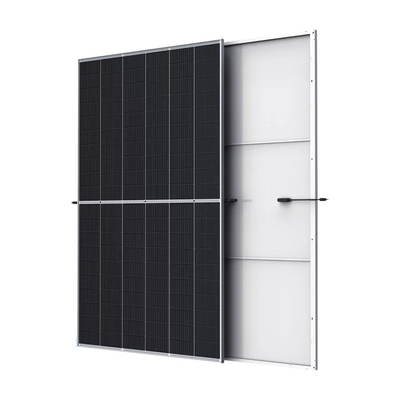

Max. Power 620Watts Inmetro Certified Half Cell Perc 210mm Solar Panel for Residential
Higher Yield Due to Better Shading Response
Half Cell Module comprises two separated and identical solar cell arrays, which means the ordinary strings of cells are cut into halves, and these shorter strings compose which has separated current paths. When a module is shaded, only one side shaded array's current will be impacted, while the other array will still be functionally producing power. Under this circumstance, when a module is shaded, the affected working areas of Blade will be 50% less. By cutting solar cell into halves, the internal power loss will be lower and hot spot effect will also be reduced.
|
Electrical Characteristics (STC)
|
|
|
|
|||
|
Module Type
|
SW600G12
|
SW610G12
|
SW620G12
|
|||
|
Maximum Power- Pmax(W)
|
600
|
610
|
620
|
|||
|
Open Circuit Voltage - Voc(V)
|
41.48
|
41.99
|
42.32
|
|||
|
Short- Circuit Current - Isc(A)
|
18.52
|
18.61
|
18.69
|
|||
|
Voltage at Pmax -Vmp(V)
|
34.42
|
34.84
|
35.26
|
|||
|
Current at Pmax - Imp(A)
|
17.44
|
17.52
|
17.61
|
|||
|
Module Efficiency -ηm(%)
|
21.21
|
21.56
|
21.89
|
|||
|
Power Tolerance(W)
|
(0,+4.99W)
|
|
|
|||
|
Maximum System Voltage(V)
|
1500VDC(IEC/UL)
|
|
|
|||
|
Maximum Series Fuse Rating (A)
|
30A
|
|
|
|||
|
Mechanical Specifications
|
|
|
|
|||
|
External Dimensions
|
2172×1303×35mm
|
|
|
|||
|
Weight
|
30.5kg
|
|
|
|||
|
Solar Cells
|
Mono crystalline 210x105 mm (2x60pcs)
|
|
|
|||
|
Front Glass
|
AR Coated 3.2 mm tempered glass
|
|
|
|||
|
Frame
|
Anodized aluminum alloy
|
|
|
|||
|
Junction Box
|
IP68
|
|
|
|||
|
Output Cables
|
4.0mm², 50cm (+), 50cm (-), length can be customized
|
|
|
|||
|
Connector
|
MC4 Compatible
|
|
|
|||
|
Mechanical Load
|
Front Side Max. 5400Pa, Rear Side Max. 2400Pa
|
|
|
|||
A Grade Material
Glass
* High-transmittance and low reflection Inspection:GB15763.2-2005.ISO9050 * High solar transmittance * High mechanical strength
Solar Cell
* High efficiency is 22%
* 210MM PERC/N Type * High shunt-resistance: adapt the several environmental conditions. * By pass diode minimizes the power drop by shade. * Excellent low light effect Low breakage rate
Frame
* Aluminium extrusion profile with prompt delivery. * Available in customized surface finish. * Excellent material for smooth and subtle edges. * Extrusion for construction and other industrial purposes.
Junction Box
* Unique split junction box design to minimize the loss caused by occlusion * Combination of series circuit and parallel circuit, reduced internal power loss. * IP68 Waterproofness, Full-Glue-Filled
Q1:Are you a factory or trade company?
We are a factory who has more than 10 years experience in manufacturing; strong aftersale service team and technical support. Free design according to client requirements.
Q2:Whats the MOQ? We have stock and semi-finished products with enough base materials for new sampleand order for all models, So small quantity order is accepted, it can meet your require.ment very well.
Q3:Why others price much cheaper? We try our best to ensure our quality to be the best one in the same level price products. We believe safety and effectiveness are the most important.
Q4:Can I have a sample for testing?
Yes, you are welcome to test samples before quantity order; Sample order will be sentout 2-3 days generally.
Q5:Can Iadd my logo on the products?
Yes,OEM and ODM are available for us. But you should send us the Trademark authori-zation letter.
Q6 :Do you have inspection procedures?
100% self-inspection before packing.
