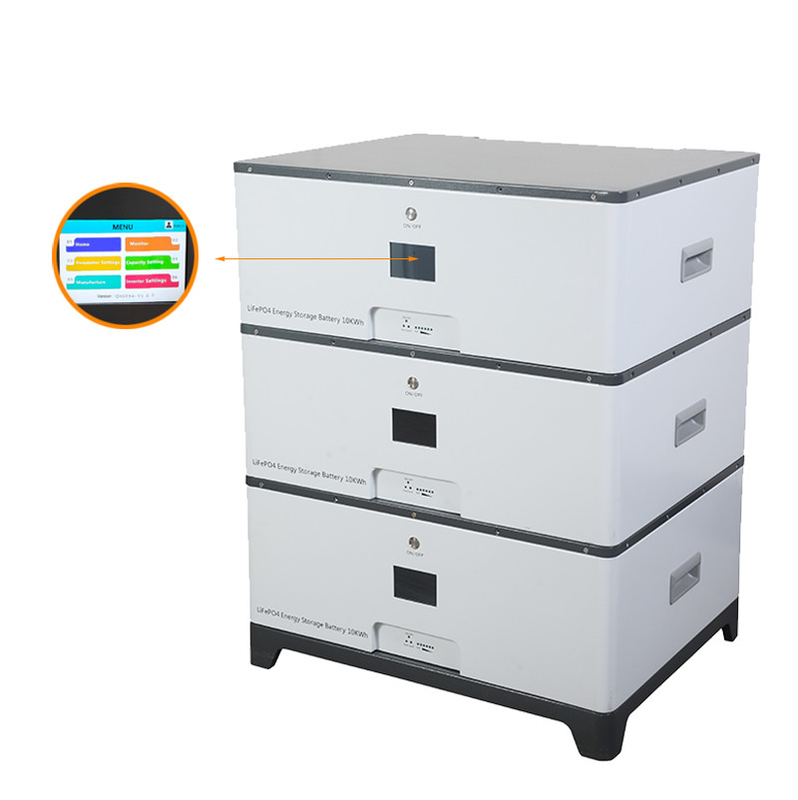

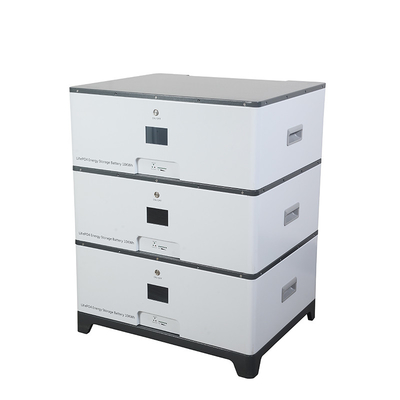

High Capacity stackale Lithium iron Battery 5kW 10kW 100Ah 200Ah 6000 Cycle Life
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | SUNWAY |
| Certification: | CE/RoHS/UN38.3/MSDS |
| Model Number: | BOX2 |
Payment & Shipping Terms:
| Price: | $365.00 - $1,460.00/pieces |
|---|
|
Detail Information |
|||
| Chargeable: | NO | Operation Atitude: | ＜3000M |
|---|---|---|---|
| The Discharge Rate: | 0.5c | Installation Mode: | Stackable |
| Battery Type: | Lithium Ion | Ip Grade: | IP65 |
| Charging Time: | 6-8 Hours | Output Power Range: | 5~10 KWh |
| Energy: | 10.24kWh-25.6kWh | Capacity: | 100Ah |
| Dimension: | 630*185*955 | Battery Cell: | A Grade 3.2V |
| Material: | High Pure Lead | Weight: | 25kg |
| Storage Type: | Home Temperature Storage | ||
Product Description
Key Features
Stackable type: Easy connection, support max 8 set parallel connection.
Longer Cycle Life : Offers up to 5000 times longer cycle life and five times longer float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership
Lighter Weight : About 40% of the weight of a comparable lead acid battery . A " drop in" replacement for lead acid batteries Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity Wider Temperature Range : -20ºC~60ºC
Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impact overcharging or short circuit situation
|
Electrical
Characteristics
|
Nominal Voltage
|
51.2
|
|
|
Nominal Capacity
|
100Ah/200Ah
|
|
|
Energy
|
5Kwh ,10Kwh
|
|
|
Internal Resistance(AC)
|
≤20mΩ
|
|
|
Cycle Life
|
>5000 cycles @ 1C 80% DOD
|
|
|
Months Self Discharge
|
<3%
|
|
|
Efficiency of Charge
|
100% @0.5C
|
|
|
Efficiency of Discharge
|
96~99% @1C
|
|
Standard Charge
|
Charge Voltage
|
58.4±0.2V
|
|
|
Charge Current
|
1C max, default 0.5C
|
|
|
Max. Charge Current
|
1C max, default 0.5C
|
|
|
Charge Cut-off Voltage
|
62.4±0.2V
|
|
Standard Discharge
|
Continuous Current
|
1C max, default 0.5C
|
|
|
Discharge Cut-off Voltage
|
43.2V
|
|
Environmental
|
Charge Temperature
|
0ºC to 55ºC (32F to 131F) @60±25% Relative Humidity
|
|
|
Discharge Temperature
|
-20ºC to 60ºC (-4F to 140F) @60±25% Relative Humidity
|
|
|
|
Humidity
|
|
|
Storage Temperature
|
-20ºC to 60ºC (-4F to 140F) @60±25% Relative Humidity
|
|
|
IP Class
|
IP30
|
