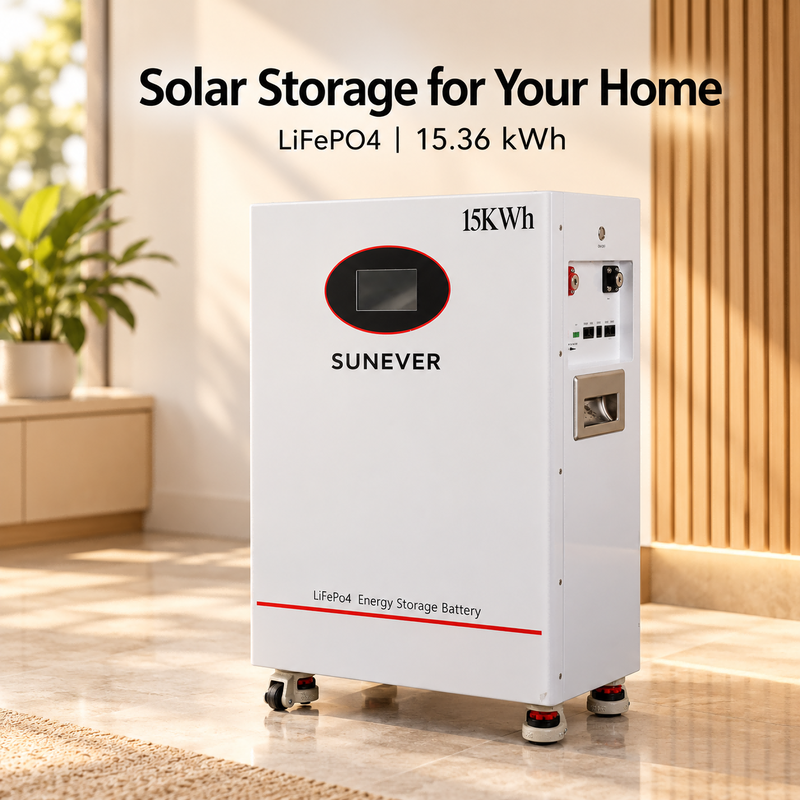

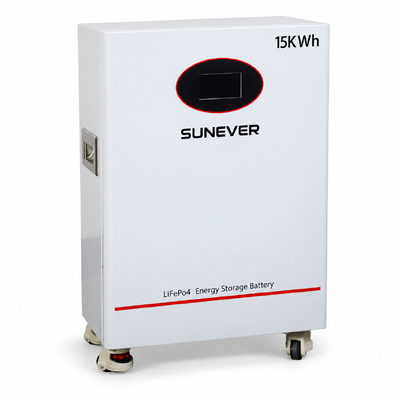

SUNEVER 15kWh Solar Battery for Home Backup

Build a home energy system around your household routine. With 15.36 kWh nominal storage, the SUNEVER TD-15 can store solar electricity for later consumption and support backup loads through a suitably configured inverter.



Product attributes

Product overview

Build a home energy system around your household routine. With 15.36 kWh nominal storage, the SUNEVER TD-15 can store solar electricity for later consumption and support backup loads through a suitably configured inverter.

15.36 kWh nominal energy • 51.2 V nominal voltage • 300 Ah capacity • LiFePO4 chemistry


From daytime sunshine to evening power

A compatible solar system can charge the battery during daylight hours and supply household loads later. System performance depends on solar generation, inverter settings and daily electricity use


Backup capacity sized to your needs

Choose the backed-up circuits and inverter rating around your actual loads. Battery energy determines storage capacity; instantaneous output is also limited by current, battery voltage and inverter capability. Backup duration varies with usable energy and load demand.
Application images show illustrative installations. Inverter, solar panels and other system equipment are not included unless specified in the quotation.


Battery structure

The battery uses a 16S1P LiFePO4 cell configuration inside a floor-standing enclosure. The structure image is a conceptual illustration of the cell group, management electronics and enclosure; it is not a factory assembly drawing. Internal layout and component appearance may vary.


Display and communication

A 4.3-inch touch screen provides a local interface. RS232, RS485 and CAN communication are available for compatible system integration. Match the inverter protocol and battery settings during commissioning.


Technical specifications

The operating-temperature range above does not establish a subzero charging limit. Final configuration and charge conditions are subject to order confirmation.


About SUNWAY

SUNWAY is a Hefei-based renewable energy supplier working with solar, wind and energy storage systems. Its product portfolio includes solar panels, lithium batteries, charge controllers and renewable energy system components for residential, telecommunications and remote-power applications. We support customers in selecting equipment and coordinating complete system supply for overseas projects.



Frequently asked questions

Is this a 15 kWh or 15.36 kWh battery?

It is marketed as a 15 kWh class battery. Nominal energy is 15.36 kWh, calculated from 51.2 V × 300 Ah. Usable energy depends on the operating depth of discharge and system settings.

Can it work with a 48 V inverter?

It is a 51.2 V nominal battery for the 48 V low-voltage system class. Confirm the inverter battery-voltage range, approved communication protocol and settings before ordering. It is not suitable for high-voltage battery inputs.

Are the inverter and solar panels included?

This listing describes the battery. Solar panels, inverter, protection devices and installation materials are separate unless included in the confirmed quotation.

Does it provide power during a grid outage?

Backup operation requires an inverter with an appropriate backup or off-grid function, correct wiring and commissioned settings. The battery alone does not supply household AC power.

Is 300 A standard?

No. Standard continuous current is 200 A. A 300 A configuration is optional and must be confirmed when ordering.


How many batteries can be connected in parallel?

Up to 16 units can be connected in parallel. Confirm the supported configuration with the selected inverter and use correctly rated cabling, protection and commissioning procedures.

What does the cycle-life rating mean?

The published rating is more than 6,000 cycles at 25 °C and 80% depth of discharge. Actual service life depends on temperature, cycling and operating conditions; this figure is not a warranty duration.

Can it be installed outdoors or charged below freezing?

Choose a protected installation location. Contact us to confirm the enclosure rating and separate charging and discharging temperature limits for your site, especially for use below 0 °C.

How long will it power my home?

Runtime depends on usable battery energy, conversion losses and the loads being supplied. A site load assessment is needed; a fixed whole-home runtime cannot be guaranteed from nominal capacity alone.

What should I send for a project quotation?

Send the destination country, quantity, inverter make and model, expected loads and required current configuration. Model-specific certification documents, warranty terms and shipping arrangements can then be confirmed for the order.
Contact us with your inverter model, application and quantity to confirm the configuration for your project.
