SUNEVER 5kWh Wall-Mounted LiFePO4 solar energy storage battery 51.2V 100Ah for solar battery storage system
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | SUNWAY |
| Model Number: | PW-01 |
| Document: | 51.2V-5KWspecification4.10.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 units |
|---|---|
| Packaging Details: | Wooden case |
| Delivery Time: | 5-25 days |
| Payment Terms: | T/T |
| Supply Ability: | 800 units per month |
|
Detail Information |
|||
| Brand: | SUNEVER | Battery Chemistry: | LiFePO4 |
|---|---|---|---|
| Nominal Energy: | 5.12 KWh | Nominal Voltage: | 51.2 V |
| Rated Capacity: | 100 Ah | Installation Type: | Wall-mounted |
| Continuous Current: | 100 A | Communication Interfaces: | RS232 / RS485 / CAN |
| Parallel Expansion: | Up To 16 Units | Cycle Life: | >6,000 Cycles* |
| Highlight: | 5kWh LiFePO4 solar battery,51.2V 100Ah wall-mounted battery,solar energy storage battery |
||
Product Description

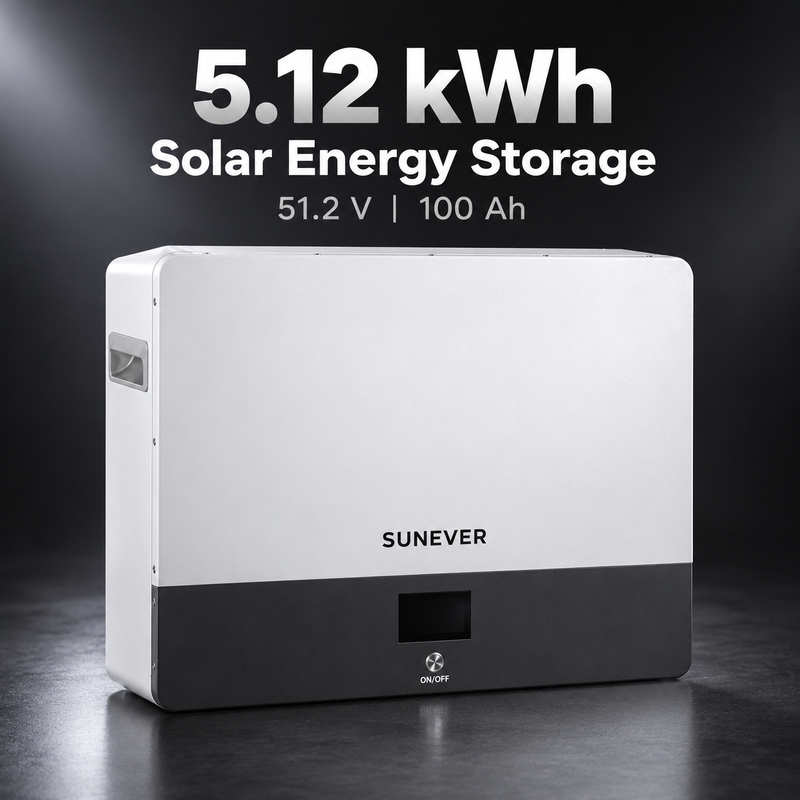

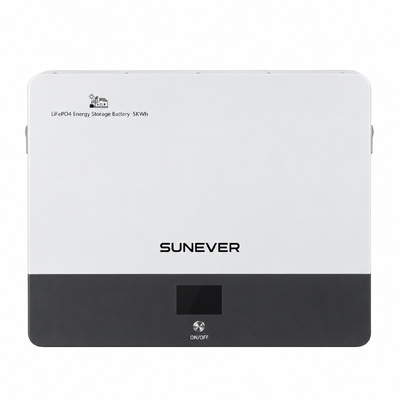

SUNEVER 51.2V 100Ah LiFePO4 Solar Storage Battery
A 16S1P low-voltage LiFePO4 battery for residential solar storage, home backup and off-grid system projects. The SUNEVER PW-01 provides 5.12 kWh nominal energy with 100 A standard continuous current .
Product attributes
| Attribute | Specification |
| Brand | SUNEVER |
| Model | PW-01 |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Nominal Energy | 5.12 kWh |
| Nominal Voltage | 51.2 V (48 V system class) |
| Rated Capacity | 100 Ah |
| Installation Type | Wall |
| Continuous Current | 100 A standard |
| Communication | RS232 / RS485 / CAN |
| Parallel Expansion | Up to 16 units |
Technical specifications
| Attribute | Specification |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Nominal Energy | 5.12KWH |
| Nominal Voltage | 51.2 V (48 V system class) |
| Rated Capacity | 100 Ah |
| Cell Configuration | 16S1P |
| Charge Cut-off Voltage | 58.4 V |
| Discharge Cut-off Voltage | 43.2 V |
| Continuous Current | 100 A standard |
| Communication | RS232 / RS485 / CAN |
| Parallel Expansion | Up to 16 units |
| Display | 3.5-inch touch screen |
| Operating Temperature | −10 to 60 °C |
| Cycle Life | >6,000 cycles at 25 °C and 80% DOD |
| Dimensions (W × H × D) | 550 × 450 × 170 mm |
| Net Weight | 47.5 kg |
The operating-temperature range above does not establish a subzero charging limit. Final configuration and charge conditions are subject to order confirmation.
Product overview
A 16S1P low-voltage LiFePO4 battery for residential solar storage, home backup and off-grid system projects. The SUNEVER PW-01 provides 5.12 kWh nominal energy with 100 A standard continuous current
Specify the complete system
Match the battery voltage range, current rating, communication protocol and protection equipment to the inverter. The standard continuous-current configuration is 100 A
Plan expansion with compatible equipment
The published parallel limit is up to 16 units. At 5.12 kWh per unit, 16 units represent 81.92 kWh nominal installed energy. Supported unit count, wiring and commissioning depend on the inverter and the confirmed system design.

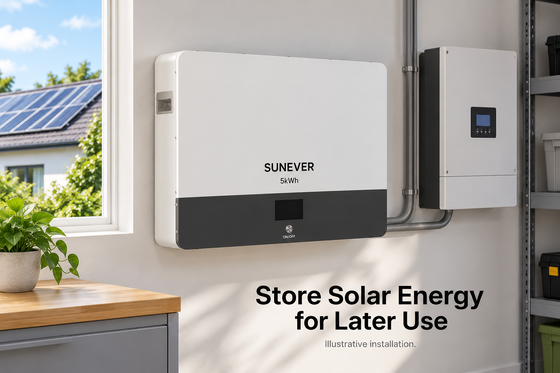

Application images show illustrative installations. Inverter, solar panels and other system equipment are not included unless specified in the quotation.
Display and communication
A 3.5-inch touch screen provides a local interface. RS232, RS485 and CAN communication are available for compatible system integration. Match the inverter protocol and battery settings during commissioning.
About SUNWAY
SUNWAY is a Hefei-based renewable energy supplier working with solar, wind and energy storage systems. Its product portfolio includes solar panels, lithium batteries, charge controllers and renewable energy system components for residential, telecommunications and remote-power applications. We support customers in selecting equipment and coordinating complete system supply for overseas projects.
Frequently asked questions
Can it work with a 48 V inverter?
It is a 51.2 V nominal battery for the 48 V low-voltage system class. Confirm the inverter battery-voltage range, approved communication protocol and settings before ordering. It is not suitable for high-voltage battery inputs.
Are the inverter and solar panels included?
This listing describes the battery. Solar panels, inverter, protection devices and installation materials are separate unless included in the confirmed quotation.
Does it provide power during a grid outage?
Backup operation requires an inverter with an appropriate backup or off-grid function, correct wiring and commissioned settings. The battery alone does not supply household AC power.
Is 100 A standard?
Yes. Standard continuous current is 100 A.
How many batteries can be connected in parallel?
Up to 16 units can be connected in parallel. Confirm the supported configuration with the selected inverter and use correctly rated cabling, protection and commissioning procedures.
What does the cycle-life rating mean?
The published rating is more than 6,000 cycles at 25 °C and 80% depth of discharge. Actual service life depends on temperature, cycling and operating conditions; this figure is not a warranty duration.
Can it be installed outdoors or charged below freezing?
Choose a protected installation location. Contact us to confirm the enclosure rating and separate charging and discharging temperature limits for your site, especially for use below 0 °C.
How long will it power my home?
Runtime depends on usable battery energy, conversion losses and the loads being supplied. A site load assessment is needed; a fixed whole-home runtime cannot be guaranteed from nominal capacity alone.
What should I send for a project quotation?
Send the destination country, quantity, inverter make and model, expected loads and required current configuration. Model-specific certification documents, warranty terms and shipping arrangements can then be confirmed for the order.
Contact us with your inverter model, application and quantity to confirm the configuration for your project.
