MPPT Controller Solar Electric System Solar Panel System With Lithium Ion Battery
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | SUNEVER |
| Model Number: | SWH48300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000 watts |
|---|---|
| Price: | $2.00/watts 3000-9999 watts |
|
Detail Information |
|||
| Warranty: | 3 Years | Free Installation Service: | Yes |
|---|---|---|---|
| Application: | Industrial, Telecom Base Station | Solar Panel Type: | Monocrystalline Silicon |
| Battery Type: | Lead-Acid, Lithium Ion | Controller Type: | MPPT |
| Mounting Type: | Ground Mounting | Load Power (W): | 3kw, 8kw, 6kw, 20kw, 5KW, 10KW |
| Output Voltage (V): | 48vdc/220vac | Output Frequency: | 50hz |
| Work Time (h): | 24Hours | Certificate: | CE IEC |
| Pre-sales Project Design: | Y | Solar Panel: | Mono Crystalline Perc Solar Panel |
| Battery: | Gel/ Lifepo4 Battery | Controller: | MPPT Solar Charge Controller |
| Rectifer: | 50A Each | ||
| Highlight: | MPPT Controller Solar Electric System,MPPT Controller Solar Panel System,5kw Solar Electric System |
||
Product Description

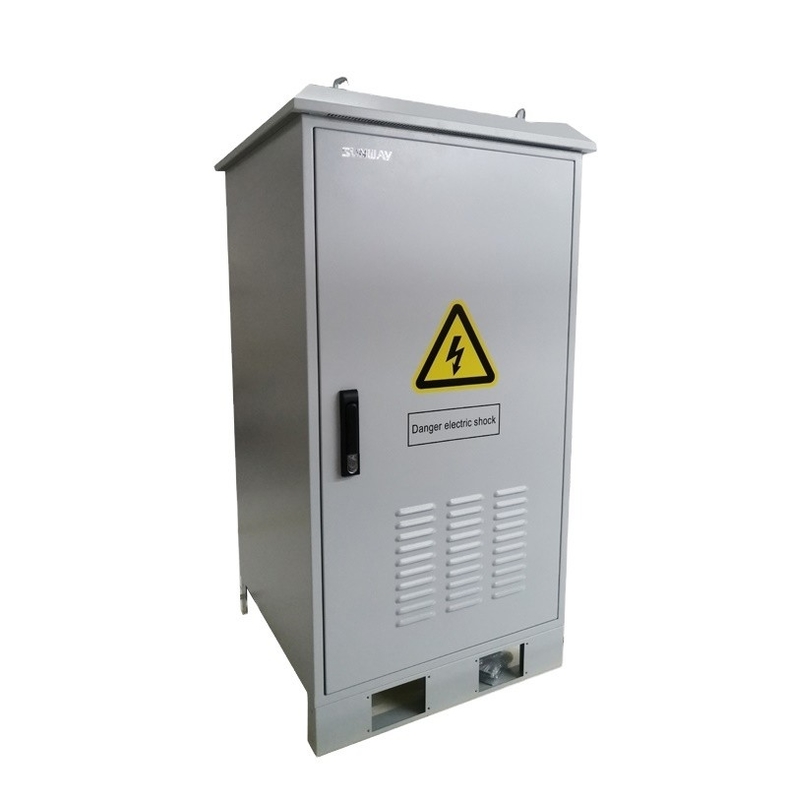

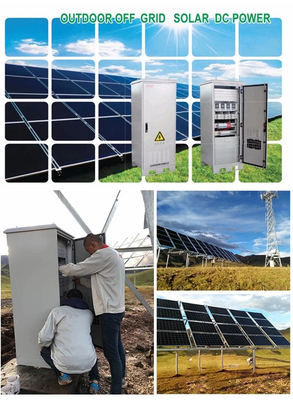

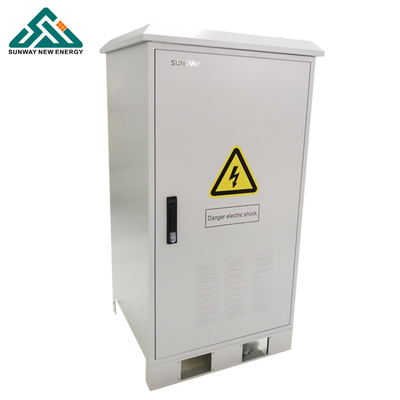

Monocrystalline Silicon Solar System for Industrial Grade BTS Telecom Base Station
Power plant or substation power for controlling, protection and automatic device, emergency lighting, communications, steam turbine DC oil pump and so on independent DC systems. It can provide reliable power supply in the case of a power failure completely in plant or substation. The traditional DC systems connect battery pack and run with float charging mode. The new DC system run with silicon controlled rectifying power supply for battery.
Key Features:
1.Adopt advanced MCU microprocessor control technology.
2.Advanced MPPT Technology,High converting efficiency higher than 97% for minimizing energy loss.
3.Reversed current protection at night, over voltage and reverse polarity protection.
4.Capable of selecting different charging mode for various types of batteries.
5.Protection degree:IP55.
6.Industy-leading power density compact size and high reliability.

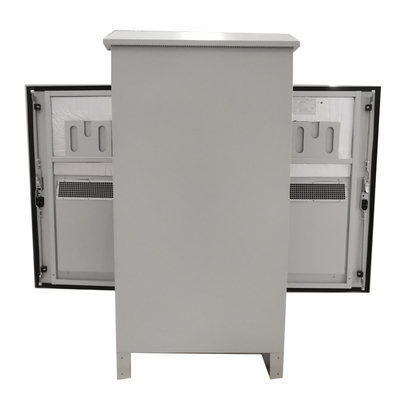

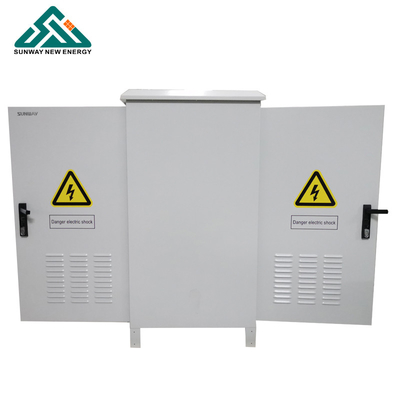

7.Doorframe designed with waterproof structure, posted on the seal and equipped with waterproof lock on the door double insulation design.
8.Cabine adopt quality galvanized sheet or aluminum coated steel sheet as material, surface coating anti-UV power.
9.Suitable for outdoor installation.
2.Advanced MPPT Technology,High converting efficiency higher than 97% for minimizing energy loss.
3.Reversed current protection at night, over voltage and reverse polarity protection.
4.Capable of selecting different charging mode for various types of batteries.
5.Protection degree:IP55.
6.Industy-leading power density compact size and high reliability.
7.Doorframe designed with waterproof structure, posted on the seal and equipped with waterproof lock on the door double insulation design.
8.Cabine adopt quality galvanized sheet or aluminum coated steel sheet as material, surface coating anti-UV power.
9.Suitable for outdoor installation.
|
INPUT
|
|
|
|
MPPT Range @Operating Voltage
|
60 ~115VDC
|
|
|
Maximum PV Array Open Circuit Voltage
|
145VDC
|
|
|
Maximum PV Array Power
|
3000W
|
|
|
OUTPUT
|
|
|
|
Nominal Battery Voltage
|
42-58VDC
|
|
|
Maximum Charge Current
|
50A
|
|
|
Maximum Efficiency
|
98%
|
|
|
Charging Method
|
Three stages: bulk, absorption and floating
|
|
|
PROTECTION
|
|
|
|
Overload Protection
|
> 110% : audible alarm
|
|
|
Overcharge Protection
|
Yes
|
|
|
Polarity Reversal Protection @Solar Cell & Battery
|
Yes
|
|
|
INDICATORS
|
|
|
|
LCD Panel
|
LCD panel indicating solar power, load level, battery voltage/capacity, charging current, and fault conditions
|
|
|
LED Display
|
Three indicators for solar, charging, and load status
|
|
|

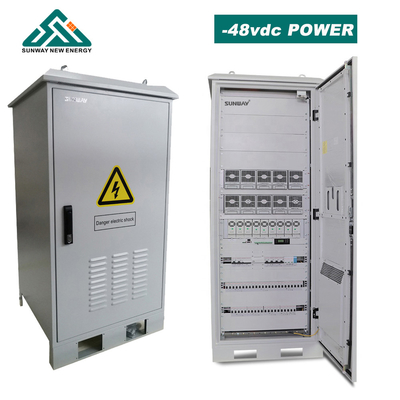

Rectifier Module
|
|
|
|
Rated Input Voltage
|
220V
|
|
|
AC Input Voltage Range
|
90-290V
|
|
|
AC Input Frequency Range
|
45-65HZ
|
|
|
Power Factor
|
≥0.99
|
|
|
Efficiency
|
>92%
|
|
|
Rated Output Voltage
|
-48V
|
|
|
Rated Output Current
|
0-50A
|
|
|
Voltage Range
|
42-58V
|
|
|
ENVIRONMENT
|
|
|
|
Humidity
|
0 ~ 100% RH (No condensing)
|
|
|
Operating Temperature
|
-20°C to 55°C
|
|
|
Storage Temperature
|
-40°C to 75°C
|
|
|
Altitude
|
0 ~ 3000m
|
|
> 30 years Warranty
> MPPT solar charger module >Max.Efficiency 99% >Type II SPD and DC side >Rectifer module >Support Lithium battery and gel battery > with backup power supply >IP55 Outdoor
>Smart monitor control center
>Outdoor or indoor type > 19 inch type lithium battery >Capacity from 5KWH-20Kwh can be selected >A grade cells >6000 times deep cycle
>PV Mounting system >Mounting Rail and rail spice kits. >AI6005& SUS 304 Bolt. >Mid & End Clamps:35,40,45,50mm
>Cables 4MM2 PV > 10MM2/16MM2 Battery cable >Connectors MC4 >DC breaker/ Isolator
