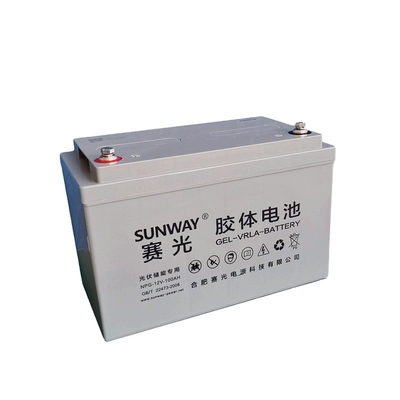

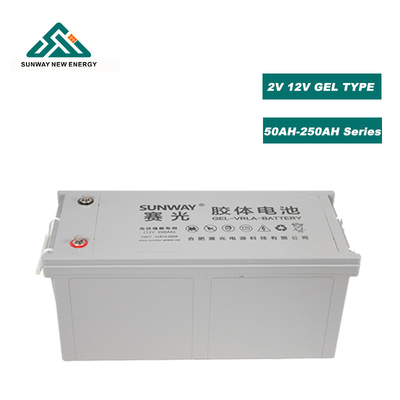

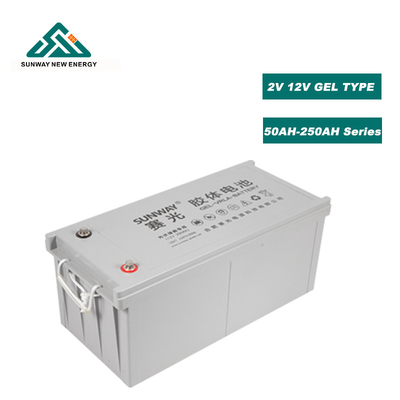

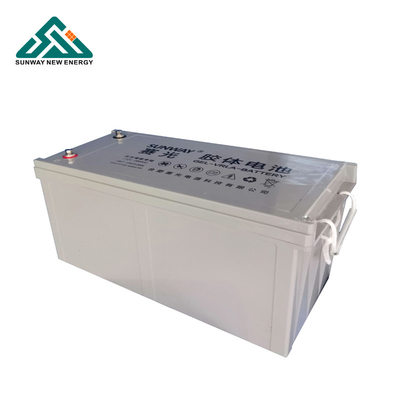

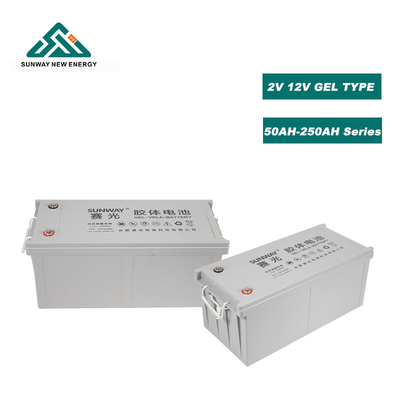

Chargeable 12V 200ah/250ah Long Life Solar Lead Acid Gel Battery for Superior Material
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | SUNEVER |
| Certification: | CE, ce |
| Model Number: | CNJ-100/250AH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 pieces |
|---|---|
| Price: | $75.00 - $208.00/pieces |
| Packaging Details: | caton box with pallet |
| Supply Ability: | 1200 Piece/Pieces per Month |
|
Detail Information |
|||
| Warranty: | 3years, 3 Years | Chargeable: | Yes |
|---|---|---|---|
| Application: | Home Appliances, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, UPS, WIND SYSTEM, ALARM SYSTEM, Lighting, Medical Equipment, Solar Storage Appliances | Battery Size: | 12V100AH-250AH |
| Battery Type: | Deep Cycle: Sealed Gel | Weight: | 30-63KG |
| Cycle Life: | 400-2150 Times | Storage Type: | 15-30Deg |
| The Charging Ratio: | 0.25C | The Discharge Rate: | 0.1C |
| Capacity: | 100-250ah | Nominal Voltage: | 12V |
| OEM/ODM: | Accepatable | Type: | Lead Acid Gel |
| Terminal Type: | F5/T10 | Material: | High Pure Lead |
| Port: | Ningbo Shanghai | ||
Product Description
Product Description of Gel battery
CNJ series GEL battery utilizes AGM and gel mixed technology, componsed of strong grids, high purity lead and fumed silica Gel electrolyte with good cycle life and wide temperature range performance. The unique plate design of the SUNWAY CNJ series gel battery provides excellent frequent cyclic discharge performance. Patented structure design and focused on energy storage batteries with 30 years' experience, CNJ series achieve a cost effective product and widely used in different solar and wind system, lighting system, marine & RV energy storage parts.
Key Features : of Gel battery
♦Gelled electrolyte made by mixing sulfuric acid with silica fume
♦The electrolyte is gel like ,immobile and does not leak ,enabling uniform reaction of each part of the plate .
♦High rate discharge performance due to tight assembly technology
♦Strong heat dissipation and wide operating temperature range
♦Avoid acid mist being separated out , environment friendliness
♦Efficient venting system release excessive gas automatically
♦The electrolyte is gel like ,immobile and does not leak ,enabling uniform reaction of each part of the plate .
♦High rate discharge performance due to tight assembly technology
♦Strong heat dissipation and wide operating temperature range
♦Avoid acid mist being separated out , environment friendliness
♦Efficient venting system release excessive gas automatically
Technology data | ||||||||||||||
Rated voltage | Capacity （10hr,1.80V/Cell） | Weight | Max discharge current | Max charging current | Self-discharge （25℃） | Using temperature | Cover Material | |||||||
12V | 100AH | 30.0kG | 30I10A(3min) | ≤0.25C10 | ||||||||||
12V | 150AH | 40.0KG | 30I10A(3min) | ≤0.25C10 | ≤3%/month | 15℃~25℃ | ABS | |||||||
12V | 200AH | 55.5KG | ||||||||||||
12V | 250AH | 63.0KG | ||||||||||||
Using temperature | Charging Voltage （25℃） | Capacity Affffected by Temperature | ||||||||||||
Discharge：-45℃~50℃ | ||||||||||||||
Charge：-20℃~45℃ | ||||||||||||||
Storage：-30℃~40℃ | 14.1V-14.4V | Cycle Charge： 2.45±0.05V/Cell | 30%DOD 2150 times | |||||||||||
Temperature Compensation Coeffiffifficient ±5mV/Cell ℃ | ||||||||||||||
Ø Q1. Can your battery be delivered by sea and air?
A: Yes, our batteries can be delivered both by sea and by air. We have MSDS, test report for safe transport as non-dangerous products.
A: Yes, our batteries can be delivered both by sea and by air. We have MSDS, test report for safe transport as non-dangerous products.
Ø Q2. Can I put my logo on the battery?
A: Yes, you can print your logo on our batteries Freely.Welcome to share us your logo design.
A: Yes, you can print your logo on our batteries Freely.Welcome to share us your logo design.
Ø Q3. Can I fast charge my battery?
A: Fast charging is not recommended as ifs harmful for the battery.
A: Fast charging is not recommended as ifs harmful for the battery.
ØQ4. Can I do a partial replacement of my batteries?
A: Partial battery replacement of lead acid battery banks is not recommended.
A: Partial battery replacement of lead acid battery banks is not recommended.
Ø Q5. How about your delivery time usually?
A: About 7 days for stock products, around 20 days for half container products, 30 days for 20ft full container products.
A: About 7 days for stock products, around 20 days for half container products, 30 days for 20ft full container products.
Ø Q6. Why battery has different capacity at different hour rate?
A: The capacity of a battery, in Ahs, is a dynamic number that is dependent on the discharge current. For example, a battery that is discharged at 10A will give you more capacity than a battery that is discharged at 100A. With the 20-hr rate, the battery is able to deliver more Ahs than with the 2-hr rate because the 20-hr rate uses a lower discharge current than the 2-hr rate.
