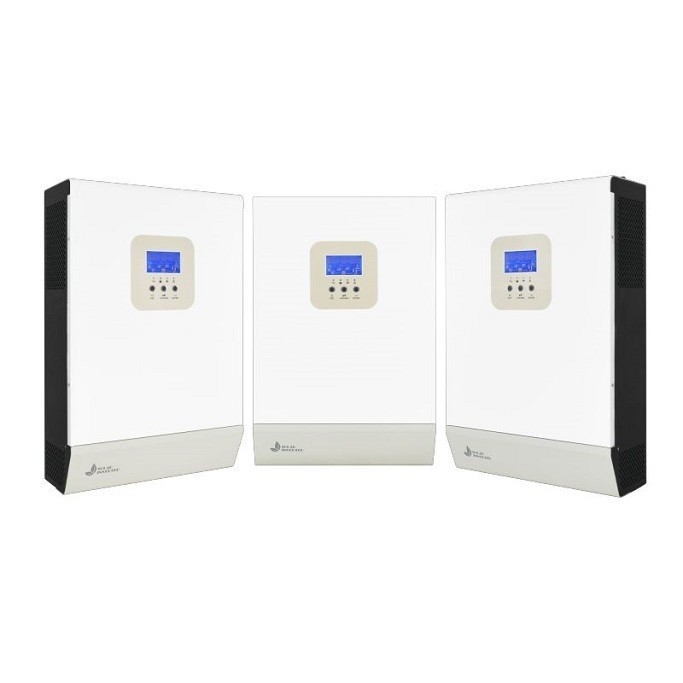

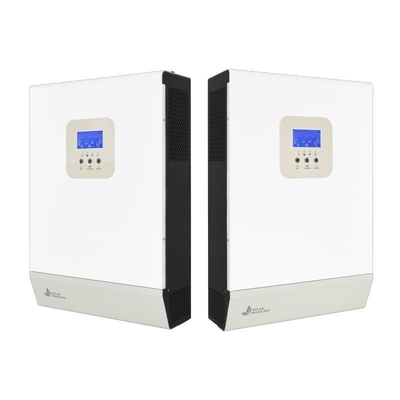

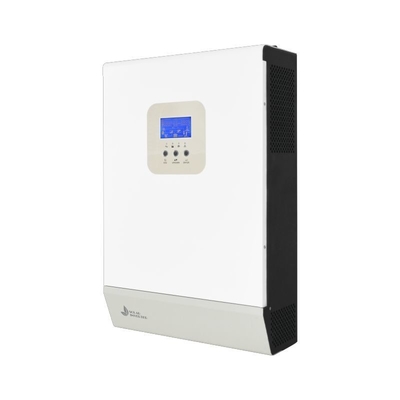

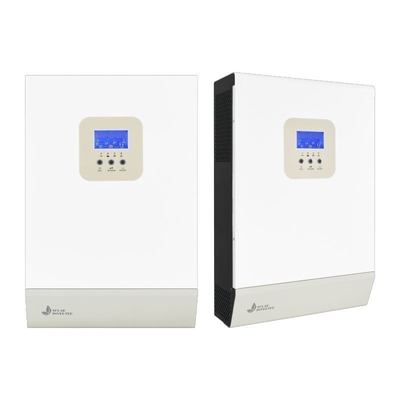

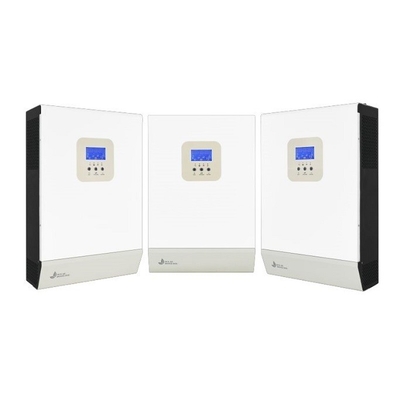

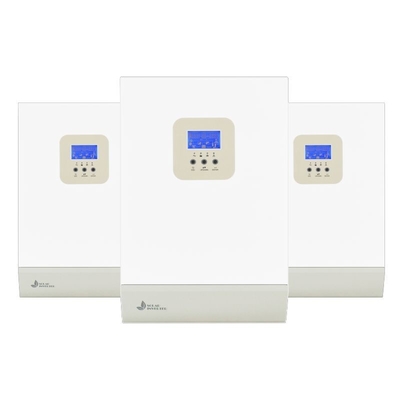

50Hz/60Hz Home Inverter System Solar Panel Inverter 3kw 8kw 10kw
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | SUNWAY |
| Model Number: | 5K 8KW 10KW |
Payment & Shipping Terms:
| Price: | $280.00/pieces |
|---|
|
Detail Information |
|||
| Input Voltage: | 125-425V | Output Voltage: | 220VAC ± 5% |
|---|---|---|---|
| Output Current: | 120a | Output Frequency: | 50Hz/60Hz |
| Output Type: | Single, DUAL, Pure Sine Wave | Size: | 426mm*322mm*126mm |
| Type: | DC/AC Inverters | Inverter Efficiency: | 98% |
| Certificate: | CE,IEC,UL | Warranty: | 3Years |
| Weight: | 11 | Product Name: | OFF GRID Hybrid Solar Inverter |
| Work Mode: | Off Grid With AC BYPASS | Battery Type: | Lead Acid \ Lithium \ Gel |
| Battery Voltage: | 40~60V | Output Voltage: | 120VAC/230VAC |
| Waveform: | Puer Sine Wave | Communication: | RS485/CAN |
| Rated Power: | 5kw 8kw 10kw | Peak Power: | 2 Times |
| MPPT Range @ Operating Voltage: | 150-450 VDC | ||
| Highlight: | 50Hz Home Inverter System,50Hz Solar Panel Inverter,3kw Home Inverter System |
||
Product Description
50Hz/60Hz Output Frequency Hybrid Solar Inverter 3kw 5kw 8kw 10kw for Solar System
Off grid Hybrid Solar Inverter 3kw 5kw 8Kw 10KW Solar Inverter off Grid Hybrid Solar Inverter
|
Model
|
3KW 24V
|
5KW 48V
|
8KW 48V
|
10KW 48V
|
||||
|
Battery Input Data
|
|
|
|
|
||||
|
Battery Type
|
Lead-acid or Lithium-ion
|
|
|
|
||||
|
Battery Voltage Range (V)
|
20-30VDC/40-60VDC
|
|
|
|
||||
|
PV input voltage(V)
|
450VDC
|
|
|
|
||||
|
PV Input Current (A)
|
16A
|
16A
|
22A+22A
|
22A+22A
|
||||
|
Max. Charging Current (A)
|
60A
|
100A
|
200A
|
|
||||
|
MPPT Strings
|
1
|
1
|
2
|
|
||||
|
Rated Output
|
3000W
|
5000W
|
8000W
|
10000W
|
||||
|
Output voltage
|
120VAC/220VAC Single phase or 110VAC/220VAC Split phase
|
|
|
|
||||
|
Output frequency
|
50HZ/60HZ
|
|
|
|
||||
|
Parallel connection
|
YES, 1-6 units Connection
|
7800W
|
9880W
|
10400W
|
||||
|
AC input range
|
90~140VAC/ 170~VAC
|
|
|
|
||||
|
Rated AC Output and UPS Power (W)
|
3000W
|
5000W
|
8000W
|
10000W
|
||||
|
Peak Power (off grid)
|
2 times of rated power, 10 S
|
|
|
|
||||
|
Current Harmonic Distortion
|
THD<3%(Linear load<1.5%)
|
|
|
|
||||
|
Operating Temperature Range (℃)
|
-25~60℃, >45℃ Derating
|
|
|
|
||||
|
Cooling
|
Fan
|
|
|
|
||||
|
Noise (dB)
|
<30
|
|
|
|
||||
|
Communication with BMS
|
RS485; CAN
|
|
|
|
||||
|
Protection Degree
|
IP65
|
|
|
|
||||
|
Installation Style
|
Wall-mounted
|
|
|
|
||||
|
Warranty
|
3 years
|
|
|
|
||||
System Architechture
Package details
PROJECT CASE
Q1:This brand can be selected?
Yes, we have DEYE, GROWATTS,MEGAREVO etc brand can be seleteted.
Q2:Whats the MOQ? We have stock and semi-finished products with enough base materials for new sampleand order for all models, So small quantity order is accepted, it can meet your require.ment very well.
Q3:Why others price much cheaper? We try our best to ensure our quality to be the best one in the same level price products. We believe safety and effectiveness are the most important.
Q4:Can I have a sample for testing?
Yes, you are welcome to test samples before quantity order; Sample order will be sentout 2-3 days generally.
Q5:Can Iadd my logo on the products?
Yes,OEM and ODM are available for us. But you should send us the Trademark authori-zation letter.
Q6 :Do you have inspection procedures?
100% self-inspection before packing.
