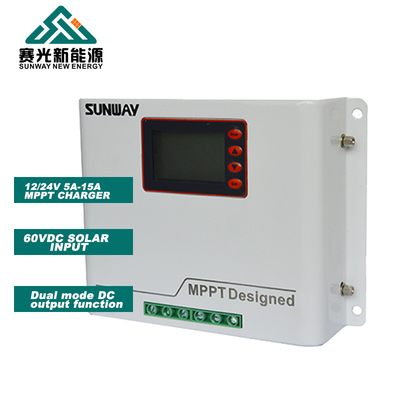

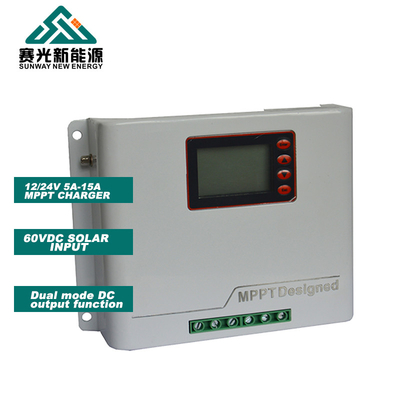

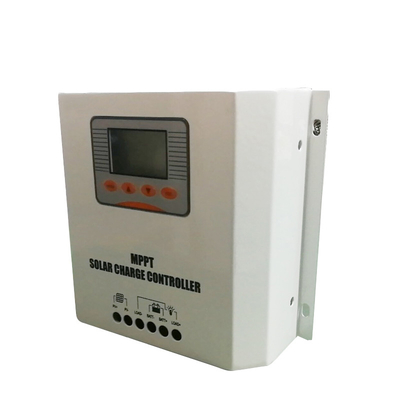

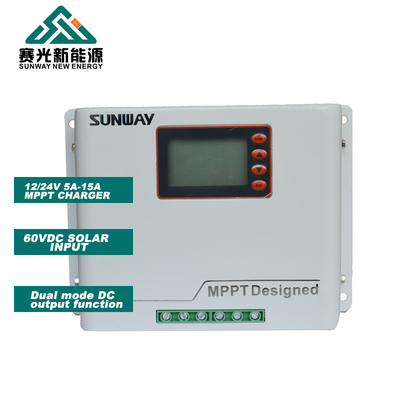

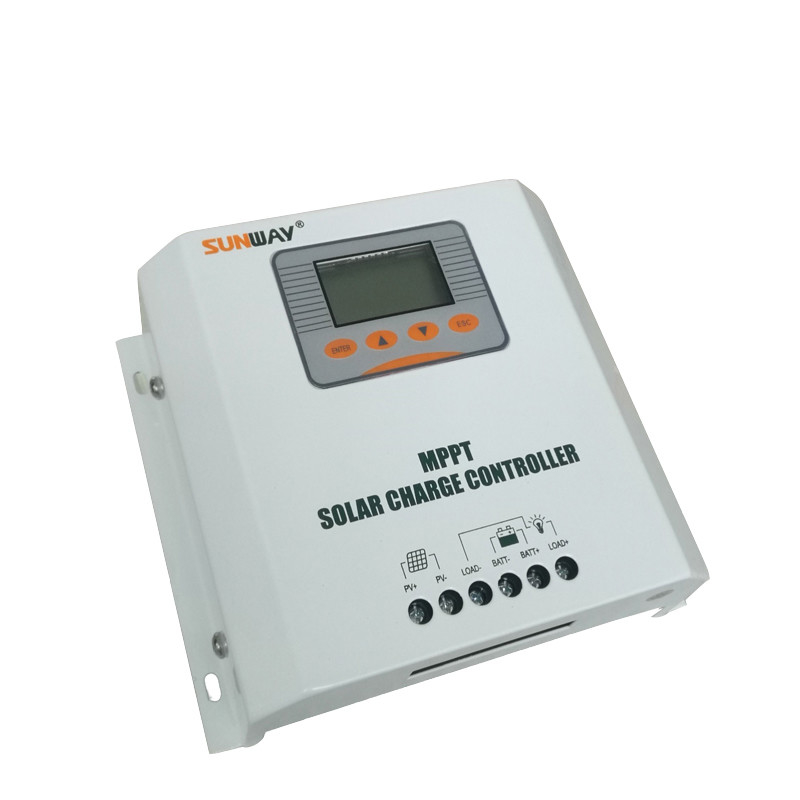

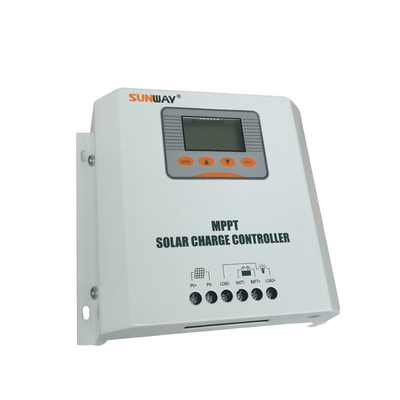

MPPT Charging 30A 40A Solar Charge Controller 12V 24V Epever with Max PV Voltage 60V
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | SUNEVER |
| Model Number: | SSCM122420 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $68.00/pieces 2-49 pieces |
| Packaging Details: | Carton box |
| Supply Ability: | 1500 Piece/Pieces per Month |
|
Detail Information |
|||
| Type: | MPPT | Application: | Charger Controller, Solar System Controller |
|---|---|---|---|
| Work Time (h): | 24H | Max PV Power: | 1000W |
| Max PV Voltage: | 60v | Certificate: | CE |
| Warranty: | 12 Months | Battery Type: | Lead-acid/Lithium/LiFePO4 Battery |
| Charge Mode: | MPPT Charging | System Voltage: | 12/24VDC Auto |
| Rated Current: | 10A/20A/30A/40A | Display: | LCD Screen |
| Protection: | Short Circuit Overload Overvolt Overtemp | Communication: | RS485/GPRS/WiFi/Ethernet |
| Protection Level: | IP32 (Indoor) | Working Temperature( C): | 25 ~+45 (Full Load) |
| OEM: | Accepted | Port: | Ningbo Shanghai |
Product Description
An intelligent Solar controller designed for the small photovoltaic off-grid power generation system, the controller adopts MPPT charging technology to automatically find the maximum power output of the photovoltaic module to charge the battery. At the same time, it has multiple protection functions, such as floating charge, overcharge, overcharge, etc. It can not only make full use of solar energy resources, but also ensure the safety and reliability of the battery pack. Meet the
technical requirements of the corresponding national standard GB / T 19064-2003
technical requirements of the corresponding national standard GB / T 19064-2003
FEATURES of Solar charge controller
1) Adopt high-performance MCU, fully automatic control;
2) MPPT maximum power point tracking charging mode;
3) Low power consumption, 96% charging efficiency;
4) More comprehensive protection functions: battery overcharge
protection, overcharge automatic recovery, underpressure protection,
underpressure automatic recovery, anti-reverse connection protection,
anti-countercharge, overload protection, short circuit protection,
overtemperature protection, lightning protection, etc.;
5) Production in strict accordance with the national standards and
requirements, with stable performance;
6) High temperature resistance, high humidity resistance, salt spray
resistance, lightning protection, wide application scenarios.
2) MPPT maximum power point tracking charging mode;
3) Low power consumption, 96% charging efficiency;
4) More comprehensive protection functions: battery overcharge
protection, overcharge automatic recovery, underpressure protection,
underpressure automatic recovery, anti-reverse connection protection,
anti-countercharge, overload protection, short circuit protection,
overtemperature protection, lightning protection, etc.;
5) Production in strict accordance with the national standards and
requirements, with stable performance;
6) High temperature resistance, high humidity resistance, salt spray
resistance, lightning protection, wide application scenarios.
Model | SWCM1224-25A | SWCM1224-30A | SWCM1224-40A | ||
PV modules Voc [V] | <100 | 150-180 | 300-360 | ||
Module arrays input [array] | 1 | ||||
Rated charging current [A] | 25-40A | ||||
Rated battery bank voltage [V] | 12/24V auto detection | ||||
High voltage protection voltage | 16.0/32.0 | ||||
Overdischarge protection voltage | 10.0/20.0 | ||||
charge efficiency | ≥96% | ||||
Charging method | MPPT Maximum Power Point Tracking | ||||
defencive function | Anti-reverse connection, short circuit protection, full disconnect and recovery, underpressure protection and recovery, etc | ||||
operating ambient temperature | -25℃~55℃ | ||||
quiescent dissipation | ≤2W | ||||
Communication | RS485/WIFI/GPRS | ||||
levels of protection | IP20 | ||||
Package details
Q1:Are you a factory or trade company?
We are a factory who has more than 10 years experience in manufacturing; strong aftersale service team and technical support. Free design according to client requirements.
Q2:Whats the MOQ？ We have stock and semi-finished products with enough base materials for new sampleand order for all models, So small quantity order is accepted, it can meet your require.ment very well.
Q3:Why others price much cheaper? We try our best to ensure our quality to be the best one in the same level price products. We believe safety and effectiveness are the most important.
Q4:Can I have a sample for testing?
Yes, you are welcome to test samples before quantity order; Sample order will be sentout 2-3 days generally.
Q5:Can Iadd my logo on the products?
Yes,OEM and ODM are available for us. But you should send us the Trademark authori-zation letter.
Q6 :Do you have inspection procedures?
100% self-inspection before packing.
