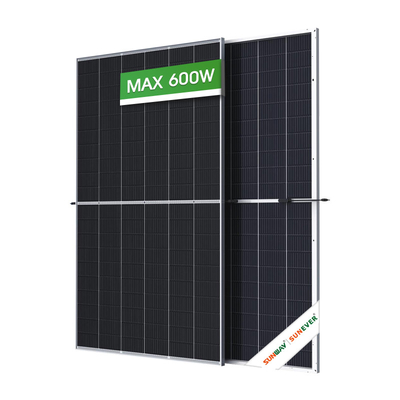

> 400-700W Mono-minute models
> Excellent mechanical load resistance
> PID Resistant,High salt and ammonia resistance
> Excellent mechanical load resistance
> PID Resistant,High salt and ammonia resistance

|
Commercial 5KW Self Sufficient Solar Power System 6kw Off Grid Solar System
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | SUNEVER |
| Model Number: | SWS10ks |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10000 watts |
|---|---|
| Price: | $0.60/watts 10000-19999 watts |
| Packaging Details: | Wooden case/ pallets |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Warranty: | 3years, 5-10 Years | Free Installation Service: | Yes |
|---|---|---|---|
| Application: | Commercial, Solar Energy Storage System | Solar Panel Type: | Monocrystalline Silicon |
| Battery Type: | Lead-Acid, Lithium Ion | Controller Type: | MPPT, PWM |
| Mounting Type: | Ground Mounting | Load Power (W): | 30kw, 20kw, 10KW |
| Output Voltage (V): | 110V/127V/220VAC/380VAC/480V | Output Frequency: | 50HZ/60HZ |
| Work Time (h): | 24Hours | Certificate: | CE, CE/RoHs |
| Pre-sales Project Design: | Y | Solar Panel: | High Efficiency 410-700Watts |
| Inverter: | Low Frequency Off Grid Pure Sine Wave Low | Solar Charge Controller: | 10-30KW IGBT Module |
| Battery Type: | Lifepo4, Lead Acid Gel Battery | Nominal Voltage: | 96V-384VDC |
| Work Mode: | Off Grid Mode,hybrid Mode | Keywords: | Solar Power System |
| Port: | Ningbo Shanghai | ||
| Highlight: | Commercial Self Sufficient Solar Power System,Commercial 6kw Off Grid Solar System,5KW Self Sufficient Solar Power System |
||
Product Description

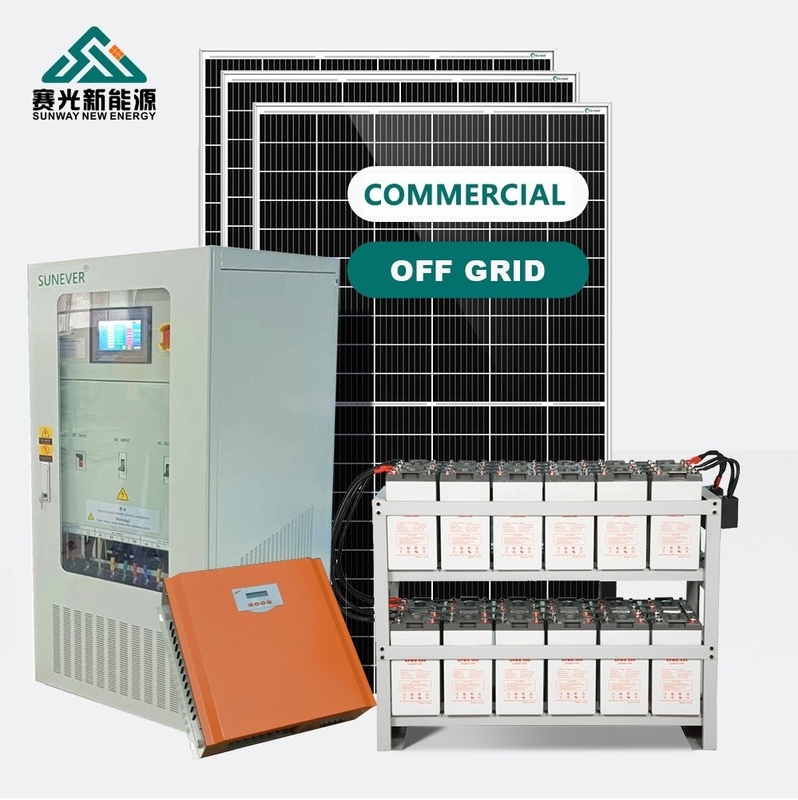

24Hours Work Time Off Grid Solar System 30kw 20kw 10kw Solar Panel Kit for Commercial
|
Example of 20KW Off grid hybrid system design
|
|
|
|
|||
|
Item
|
Name
|
Description
|
Quantity
|
|||
|
1
|
Solar panel
|
600W, Mono PERC high efficiency
|
32
|
|||
|
2
|
PV combiner box
|
4 strings 1000V 25A
|
1
|
|||
|
3
|
Solar charge controller
|
Rated power:20Kwp
Battery:240V
Max charge current:100A
|
1
|
|||
|
4
|
Battery
|
240V Gel battery bank
Or 240V lithium battery bank
|
1
|
|||
|
5
|
Off grid Inverter
|
Single phase 220VAC OR
Three phase 380VAC
Rated:20KW output
Low frequency type
Pure sine wave output
|
1
|
|||
|
6
|
Mounting brackets
|
Roof or Ground type
|
1
|
|||
|
7
|
Accessories
|
Cables,MC4 connectors
|
1
|
|||
> 30 years Warranty
>1000VDC/1500VDC >4-20 Strings >Include SPD >15A/25ADC fuses >125A-600A DC breaker Or MCBs

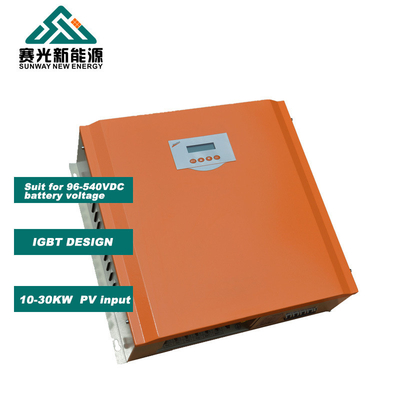

>IGBT design
>10KW-30KW PV input
>Battery voltage suit for 96-540VDC
>10KW-30KW PV input
>Battery voltage suit for 96-540VDC
>LED screen
>All parameters can be adjust at screen
>One DC input
> Agm Battery
> Gel Battery
> 2V,12V
Without a battery bank (or a generator) it'll be lights out by sunset. A battery bank is essentially a group of batteries wired
together
> Gel Battery
> 2V,12V
Without a battery bank (or a generator) it'll be lights out by sunset. A battery bank is essentially a group of batteries wired
together

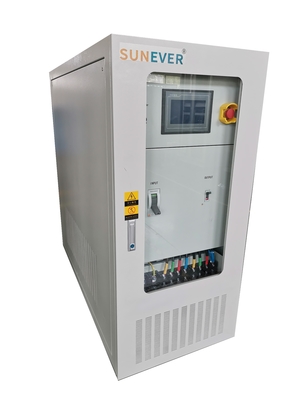

> Input Voltage from 12V to 384V
> Input Ampere 5A to 200A
> Output voltage 110/220V/380v/400V
> Single phase and Three phase
>US standard dual voltage output also optional
> Input Ampere 5A to 200A
> Output voltage 110/220V/380v/400V
> Single phase and Three phase
>US standard dual voltage output also optional
> AC bypass function

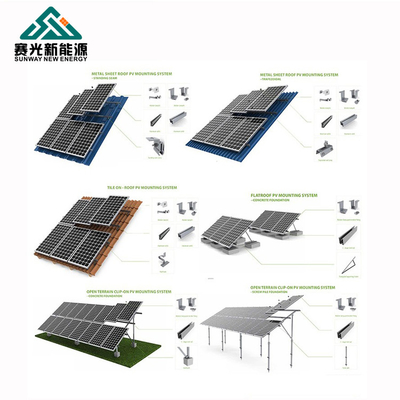

>PV Mounting system >Mounting Rail and rail spice kits. >AI6005& SUS 304 Bolt. >Mid & End Clamps:35,40,45,50mm
>Cables 4MM2 PV > 10MM2/16MM2 Battery cable >Connectors MC4 >DC breaker/ Isolator
Q1:Are you a factory or trade company?
We are a factory who has more than 10 years experience in manufacturing; strong aftersale service team and technical support. Free design according to client requirements.
Q2:Whats the MOQ? We have stock and semi-finished products with enough base materials for new sampleand order for all models, So small quantity order is accepted, it can meet your require.ment very well.
Q3:Why others price much cheaper? We try our best to ensure our quality to be the best one in the same level price products. We believe safety and effectiveness are the most important.
Q4:Can I have a sample for testing?
Yes, you are welcome to test samples before quantity order; Sample order will be sentout 2-3 days generally.
Q5:Can Iadd my logo on the products?
Yes,OEM and ODM are available for us. But you should send us the Trademark authori-zation letter.
Q6 :Do you have inspection procedures?
100% self-inspection before packing.
Want to Know more details about this product
