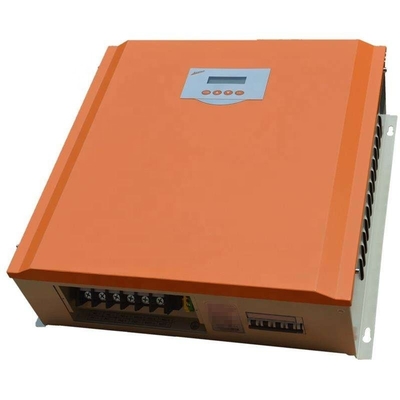

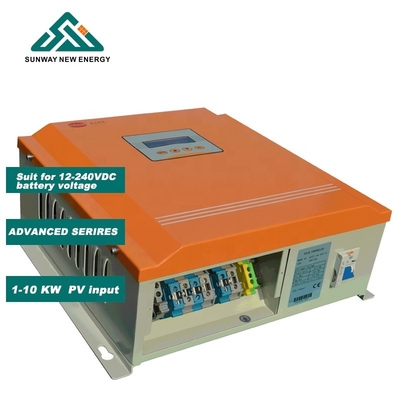

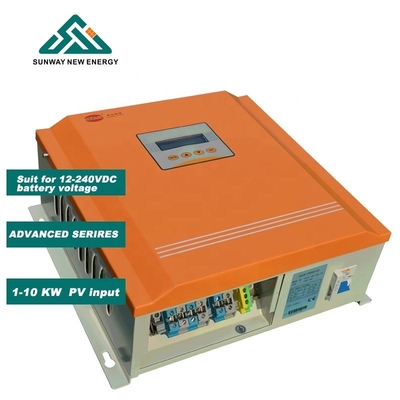

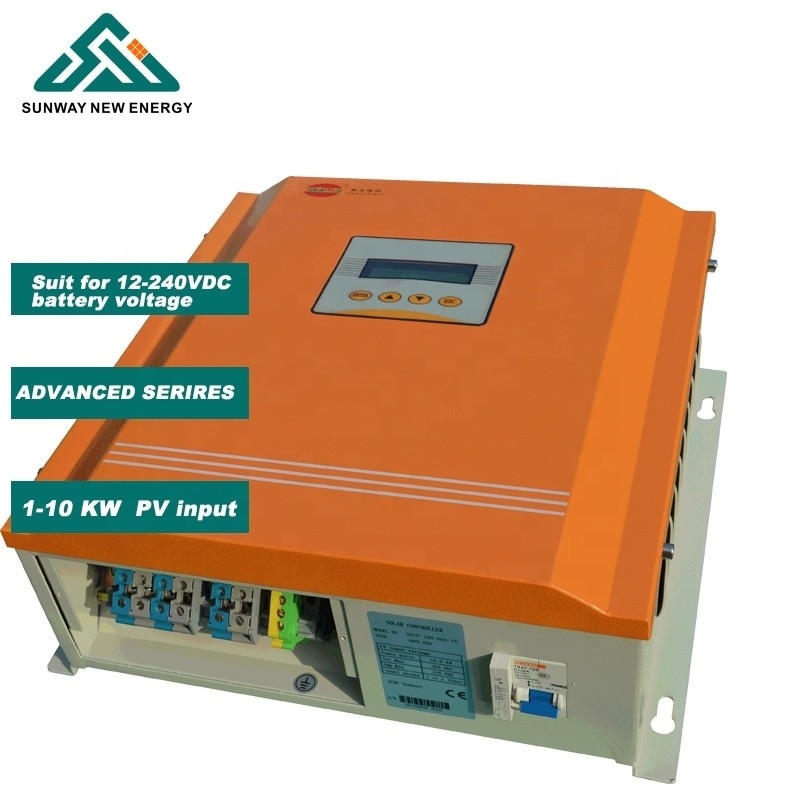

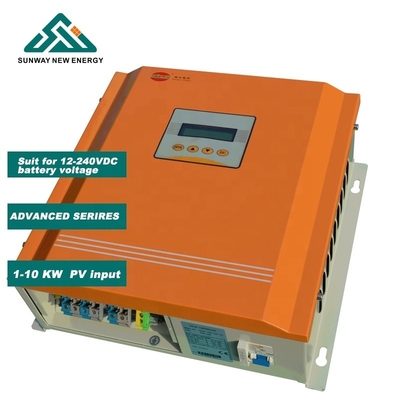

240v MPPT Solar Charge Controller with RS485/GPRS Communication and PWM Charging Mode
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | SUNEVER |
| Model Number: | SSCP-240100-TE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $265.00/pieces 2-9 pieces |
| Packaging Details: | Carton box<br>New style 240v mppt solar charge controller over discharge protection pwm solar charge controller |
| Supply Ability: | 600 Piece/Pieces per Month |
|
Detail Information |
|||
| Type: | PWM | Application: | Charger Controller, Solar System Controller |
|---|---|---|---|
| Work Time (h): | 24H | Max PV Power: | 30KW |
| Max PV Voltage: | 1000V | Certificate: | CE |
| Warranty: | 12 Months | Battery Type: | Lead-acid/Lithium/LiFePO4 Battery |
| Charge Mode: | PWM/MPPT Charging | System Voltage: | 48-512VDC |
| Rated Current: | 50A-250A | Display: | LCD Screen |
| Protection: | Short Circuit Overload Overvolt Overtemp | Communication: | RS485/GPRS/WiFi/Ethernet |
| Protection Level: | IP32 (Indoor) | Working Temperature( C): | 25 ~+45 (Full Load) |
| OEM: | Accepted | Port: | Ningbo Shanghai |
Product Description
As a SME manufacture of solar controller, Sunway power using the most advanced technology to rise the efficiency of solar charging to the optimum level. This controller is for off-grid PV system to control the charging and discharging of the battery, especially suitable for street light system. The controller features a smart tracking algorithm inside that maximizes the energy from the solar PV module(s) and charge the battery. At the same time, the low voltage disconnect function (LVD) will prevent the battery from over discharging. Charging process has been optimized for long battery life and improved system performance. Meanwhile, the comprehensive self-diagnostics and electronic protection functions can prevent damage from installation mistake or system faults.
FEATURES of Solar charge controller
* Accomodate 1/2 strings input of solar module arrays
* Digital and module structure designed
* LCD equipped to show parameters of system running status
* High efficiency with by PWM charge mode
* Multi protections as anti-reverse connection, no charging reversely on night. And over-charge, limited charging current
&voltage protections for battery
* With system abnormal status alarm function
* Users can to modify the system parameters by setting keys
* Equipped with data communication function (optional)
* Be able to offer DC power supply (optional)
* Day and night double processing mode
* Intelligent cooling system inset
* Digital and module structure designed
* LCD equipped to show parameters of system running status
* High efficiency with by PWM charge mode
* Multi protections as anti-reverse connection, no charging reversely on night. And over-charge, limited charging current
&voltage protections for battery
* With system abnormal status alarm function
* Users can to modify the system parameters by setting keys
* Equipped with data communication function (optional)
* Be able to offer DC power supply (optional)
* Day and night double processing mode
* Intelligent cooling system inset
Model | SSCP-96V | SSCP-120V | SSCP-240V | ||
PV modules Vmp [V] | 120-144 | 150-180 | 300-360 | ||
Module arrays input [array] | 1 | ||||
Rated charging current [A] | 30-200A(Can be customized according to final application) | ||||
Rated battery bank voltage [V] | 96V/120V/144V/240V/360V/480V, not auto detection | ||||
Topology | Transformerless | ||||
LCD Display | LCD (16X2characters,green backlight) | ||||
Operating temperature | 0%~98% Non-condensing | ||||
Terminal | Universal UK series | ||||
Data-transfer port | RS485/232/WIFI/GPRS | ||||
Mounting | Wall | ||||
Main dimension(W*D*H)[mm] | 380*355*150 | ||||
Main-device net weight [kg] | 8.5 | ||||

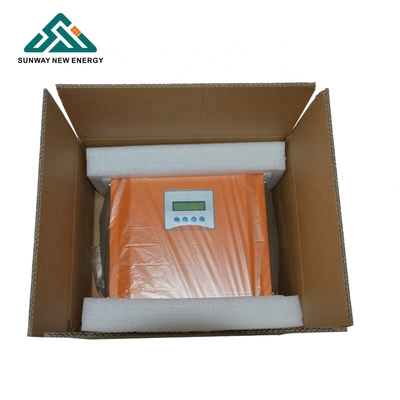

Package details
Q1:Are you a factory or trade company?
We are a factory who has more than 10 years experience in manufacturing; strong aftersale service team and technical support. Free design according to client requirements.
Q2:Whats the MOQ？ We have stock and semi-finished products with enough base materials for new sampleand order for all models, So small quantity order is accepted, it can meet your require.ment very well.
Q3:Why others price much cheaper? We try our best to ensure our quality to be the best one in the same level price products. We believe safety and effectiveness are the most important.
Q4:Can I have a sample for testing?
Yes, you are welcome to test samples before quantity order; Sample order will be sentout 2-3 days generally.
Q5:Can Iadd my logo on the products?
Yes,OEM and ODM are available for us. But you should send us the Trademark authori-zation letter.
Q6 :Do you have inspection procedures?
100% self-inspection before packing.
