Product Details:

Place of Origin: Anhui, China
Brand Name: SUNEVER
Model Number: SWC-3048VTA

Payment & Shipping Terms:

Price: $285.00/pieces 1-9 pieces
Packaging Details: carton box<br>Good selling hibrid 24v 48v 96v 1kw 2kw 3kw mppt hybrid solar wind charge controller
Supply Ability: 600 Piece/Pieces per Month
Get Best Price Contact Now

Detail Information
Type: PWM Certificate: CE
Warranty: 12 Month Work Time (h): 24 Hours
Rated Power: 1KW-5KW Battery Type: Lead-acid/Lithium/LiFePO4 Battery
Battery Voltage: 48V-220VDC Wind Turbine Voltage: 48VAC-220VAC
Display: LED Display Color: Blue/orange
Protection: Overcurrent Overvoltage Brake: Dump Load
Control Mode: Intelligent Control Cooling Mode: Cooling Fan
Port: Ningbo Shanghai

Product Description

Good Selling Hybrid Solar Wind Charge Controller 24v 48v 96v 1kw 2kw 3kw MPPT PWM 0
Good Selling Hybrid Solar Wind Charge Controller 24v 48v 96v 1kw 2kw 3kw MPPT PWM 1

FEATURES:

1.) Control using common positive polarity way, double lines for solar array
2.) Digital design, module structure, high stability and reliability
3.) Wind-turbine brake setting with user-key be programmable
4.) LCD equipped (backlighting) to show parameters of system running status
5.) High efficiency with by PWM charging method

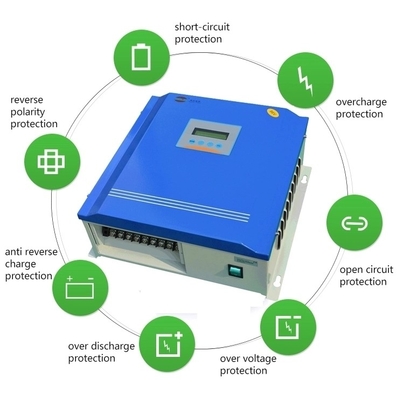

6.) Multi-protections such as anti-reverse connection, no charging reversely while night. And Over-charge, limited charging
current &voltage protections for battery
7.) User can adjust setting of battery management system(BMS) and charging controlling
8.) With alarm function in system abnormal status
9.) Equipped with data communication function (optional)
10.) Intelligent cooling system inset
Good Selling Hybrid Solar Wind Charge Controller 24v 48v 96v 1kw 2kw 3kw MPPT PWM 2
Model
1KW/24V,48V
2KW/48V,96V
3KW/48V,96V
Wind-turbine power[KW]
1
2
3
Rated wind-turbine voltage[V]
28.8 ; 57.6 ; 115.2 ; 144; 288
Rated battery voltage[V]
24 ;  48 ; 96 ; 120 ; 240
Electrical parameters
Consumption at standby [mA]
≤60
Consumption at night [mA]
≤20
Operating Temperature Range
-25ºC ~ +60ºC
Cooling Method
Convection with double cooling fans
Operating temperature
0%~98% Non-condensing
Terminal
Barrier terminal
Data-transfer port
RS485/232/WIFI/GPRS
Mounting
Wall
Main dimension(W*D*H)[mm]
380*355*150
Main-device net weight [kg]
8.5

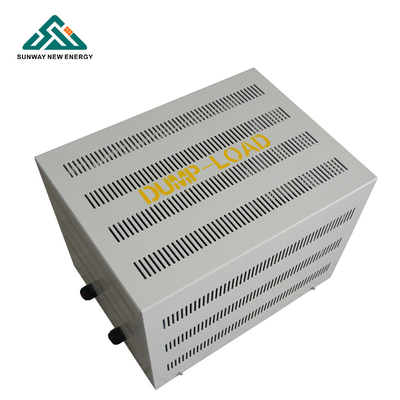

Dump dimension(W*D*H)[mm]
440*160*170
440*240*150
440*240*150
Dump-load net weight [kg]
4
7
8.5
Good Selling Hybrid Solar Wind Charge Controller 24v 48v 96v 1kw 2kw 3kw MPPT PWM 3
Good Selling Hybrid Solar Wind Charge Controller 24v 48v 96v 1kw 2kw 3kw MPPT PWM 4
Good Selling Hybrid Solar Wind Charge Controller 24v 48v 96v 1kw 2kw 3kw MPPT PWM 5
Good Selling Hybrid Solar Wind Charge Controller 24v 48v 96v 1kw 2kw 3kw MPPT PWM 6
Good Selling Hybrid Solar Wind Charge Controller 24v 48v 96v 1kw 2kw 3kw MPPT PWM 7
Good Selling Hybrid Solar Wind Charge Controller 24v 48v 96v 1kw 2kw 3kw MPPT PWM 8
Good Selling Hybrid Solar Wind Charge Controller 24v 48v 96v 1kw 2kw 3kw MPPT PWM 9
Good Selling Hybrid Solar Wind Charge Controller 24v 48v 96v 1kw 2kw 3kw MPPT PWM 10
Good Selling Hybrid Solar Wind Charge Controller 24v 48v 96v 1kw 2kw 3kw MPPT PWM 11
Good Selling Hybrid Solar Wind Charge Controller 24v 48v 96v 1kw 2kw 3kw MPPT PWM 12
Good Selling Hybrid Solar Wind Charge Controller 24v 48v 96v 1kw 2kw 3kw MPPT PWM 13

Package details

Good Selling Hybrid Solar Wind Charge Controller 24v 48v 96v 1kw 2kw 3kw MPPT PWM 14
Good Selling Hybrid Solar Wind Charge Controller 24v 48v 96v 1kw 2kw 3kw MPPT PWM 15
Good Selling Hybrid Solar Wind Charge Controller 24v 48v 96v 1kw 2kw 3kw MPPT PWM 16
Good Selling Hybrid Solar Wind Charge Controller 24v 48v 96v 1kw 2kw 3kw MPPT PWM 17
Q1:Are you a factory or trade company?
We are a factory who has more than 10 years experience in manufacturing; strong aftersale service team and technical support. Free design according to client requirements.
Q2:Whats the MOQ？ We have stock and semi-finished products with enough base materials for new sampleand order for all models, So small quantity order is accepted, it can meet your require.ment very well.
Q3:Why others price much cheaper? We try our best to ensure our quality to be the best one in the same level price products. We believe safety and effectiveness are the most important.
Q4:Can I have a sample for testing?
Yes, you are welcome to test samples before quantity order; Sample order will be sentout 2-3 days generally.
Q5:Can Iadd my logo on the products?
Yes,OEM and ODM are available for us. But you should send us the Trademark authori-zation letter.
Q6 :Do you have inspection procedures?
100% self-inspection before packing.
