10kwh 20kwh Stackable All In One Home Energy Solar Storage Battery for Off Grid Power
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | SUNWAY |
| Model Number: | SWS-5048 |
Payment & Shipping Terms:
| Price: | $800.00/pieces 1-4 pieces |
|---|---|
| Packaging Details: | Wooden case/ pallets<br>Solar System 10kw Complete 5kw 6kw 10kw Complete Solar Kit Off On Grid Solar Panel System For Home Solar Energy System 10kw |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Battery Type: | LiFePO4 | Output Power Range: | 10~20 KWh |
|---|---|---|---|
| Dimension (L*W*H): | / | Weight: | / |
| System Type: | Stackable, Rack-mounted | Type: | All-in-one |
| Communication Port: | CAN, RS485 | Grid Connection: | Off Grid, Hybrid Grid |
| Application: | Solar Storage Appliances | Capacity: | Lifepo4, Lead Acid Gel Battery |
| Battery Cycle Life: | 6000 Cycles @ 80%DOD | Nominal Voltage: | 48Vdc / 51.2Vdc |
| Certificate: | CE/RoHS/UN38.3/MSDS | Warranty: | 20 Years |
| Battery Cell: | A Grade 3.2V | Inverter Matched: | Deye/Growatts/Sofar/etc |
| BMS: | Built-in BMS Protection | ||
Product Description
Key Features

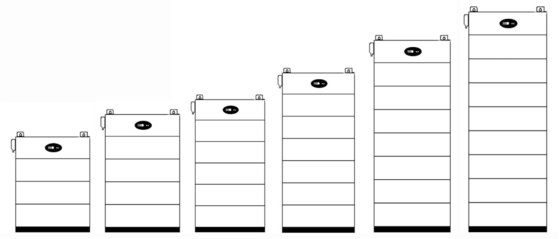

Wall type: Easy connection, support max 8 set parallel connection. Longer Cycle Life : Offers up to 5000 times longer cycle life and five times longer float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership Lighter Weight : About 40% of the weight of a comparable lead acid battery . A " drop in" replacement for lead acid batteries Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity Wider Temperature Range : -20ºC~60ºC Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impact overcharging or short circuit situation
Electrical Characteristics | Nominal Voltage | 51.2 |
Nominal Capacity | 100Ah/200Ah | |
Energy | 5Kwh ，10Kwh | |
Internal Resistance(AC) | ≤20mΩ | |
Cycle Life | >5000 cycles @ 1C 80% DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 58.4±0.2V |
Charge Current | 1C max, default 0.5C | |
Max. Charge Current | 1C max, default 0.5C | |
Charge Cut-off Voltage | 62.4±0.2V | |
Standard Discharge | Continuous Current | 1C max, default 0.5C |
Discharge Cut-off Voltage | 43.2V | |
Environmental | Charge Temperature | 0ºC to 55ºC (32F to 131F) @60±25% Relative Humidity |
Discharge Temperature | -20ºC to 60ºC (-4F to 140F) @60±25% Relative Humidity | |
Humidity | ||
Storage Temperature | -20ºC to 60ºC (-4F to 140F) @60±25% Relative Humidity | |
IP Class | IP30 |
Q1:Are you a factory or trade company?
We are a factory who has more than 10 years experience in manufacturing; strong aftersale service team and technical support. Free design according to client requirements.
Q2:Whats the MOQ？ We have stock and semi-finished products with enough base materials for new sampleand order for all models, So small quantity order is accepted, it can meet your require.ment very well.
Q3:Why others price much cheaper? We try our best to ensure our quality to be the best one in the same level price products. We believe safety and effectiveness are the most important.
Q4:Can I have a sample for testing?
Yes, you are welcome to test samples before quantity order; Sample order will be sentout 2-3 days generally.
Q5:Can Iadd my logo on the products?
Yes,OEM and ODM are available for us. But you should send us the Trademark authori-zation letter.
Q6 :Do you have inspection procedures?
100% self-inspection before packing.
