Wall Mounted 8kw Off Grid Solar System With Solar Panel All In One
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | SUNWAY |
| Model Number: | SWS-5048 |
Payment & Shipping Terms:
| Price: | $3,880.00/pieces 1-4 pieces |
|---|---|
| Packaging Details: | Wooden case/ pallets<br>Home Solar System 5kw 410-700Watts Hybrid Solar System 5kw 8kw 10kw 12kw Solar Energy System |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Battery Type: | LiFePO4 | Output Power Range: | 5~10 KWh |
|---|---|---|---|
| System Type: | Wall-mounted, Stackable | Type: | All-in-one |
| Grid Connection: | Off Grid | Solar Panel: | High Efficiency 410-700Watts |
| Inverter: | All In One Solar Inverter | Battery Type: | Lifepo4, Lead Acid Gel Battery |
| Battery Cycle Life: | 6000 Cycles @ 80%DOD | Nominal Voltage: | 48Vdc / 51.2Vdc |
| Certificate: | CE/RoHS | Warranty: | 5-10 Years |
| Work Mode: | Off Grid Mode,hybrid Mode | Application: | Home Solar Energy Storage System |
| Battery Capacity: | 48V 300Ah 400Ah / 15Kwh 20Kwh | Port: | Ningbo Shanghai |
| Highlight: | Wall Mounted Off Grid Solar System,Wall Mounted off grid solar kit,8kw Off Grid Solar System |
||
Product Description

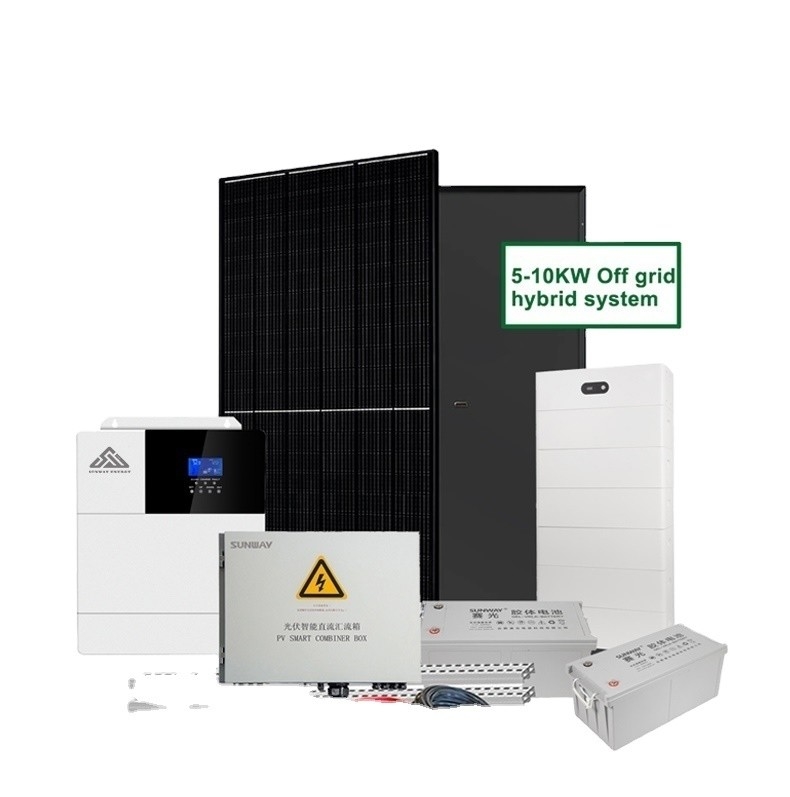

Wall-mounted 5kw 8kw 10kw 15kw Off Grid Hybrid Solar Power System with Solar Panel
|
Example of 5KW Off grid hybrid system design
|
|
|
|
|||
|
Item
|
Name
|
Description
|
Quantity
|
|||
|
1
|
Solar panel
|

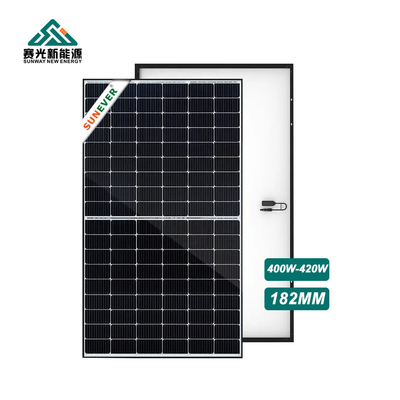

420W, Mono PERC high efficiency
|
12
|
|||
|
2
|
DC isolator
|
1000V 25A
|
1
|
|||
|
3
|

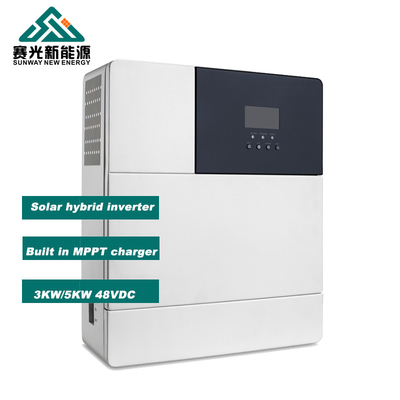

Off grid hybrid inverter
|
Rated power:5.5KWp
Battery:48V/51.2V
Built in 100A charger
120VAC US standard or
220VAC EU standard
Parallel connection
|
1
|
|||
|
4
|
Battery
|
5KWH/10KWH lifepo4
Or 48V gel battery bank
|
1
|
|||
|
5
|
Mounting brackets
|
Roof or Ground type
|
1
|
|||
|
6
|
Accessories
|
Cables,MC4 connectors
|
1
|
|||
> 30 years Warranty
>With built-in MPPT solar charger >Max.Efficiency 99% >Type II SPD and DC side >Supports Export limitation >Support Lithium battery and gel battery > with backup power supply and feed power to grid function >Touch key and OLED display
>Wall type lithium battery > Stackable type lithium battery >Capacity from 5KWH-20Kwh can be selected >A grade cells >6000 times deep cycle

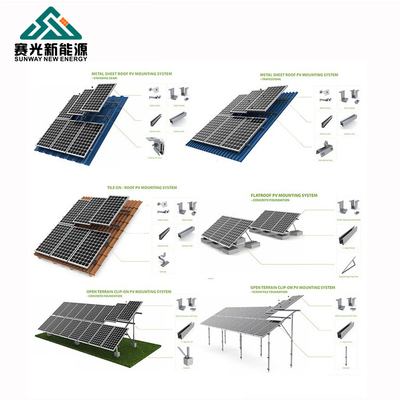

>PV Mounting system >Mounting Rail and rail spice kits. >AI6005& SUS 304 Bolt. >Mid & End Clamps:35,40,45,50mm
>Cables 4MM2 PV > 10MM2/16MM2 Battery cable >Connectors MC4 >DC breaker/ Isolator
Q1:Are you a factory or trade company?
We are a factory who has more than 10 years experience in manufacturing; strong aftersale service team and technical support. Free design according to client requirements.
Q2:Whats the MOQ? We have stock and semi-finished products with enough base materials for new sampleand order for all models, So small quantity order is accepted, it can meet your require.ment very well.
Q3:Why others price much cheaper? We try our best to ensure our quality to be the best one in the same level price products. We believe safety and effectiveness are the most important.
Q4:Can I have a sample for testing?
Yes, you are welcome to test samples before quantity order; Sample order will be sentout 2-3 days generally.
Q5:Can Iadd my logo on the products?
Yes,OEM and ODM are available for us. But you should send us the Trademark authori-zation letter.
Q6 :Do you have inspection procedures?
100% self-inspection before packing.
