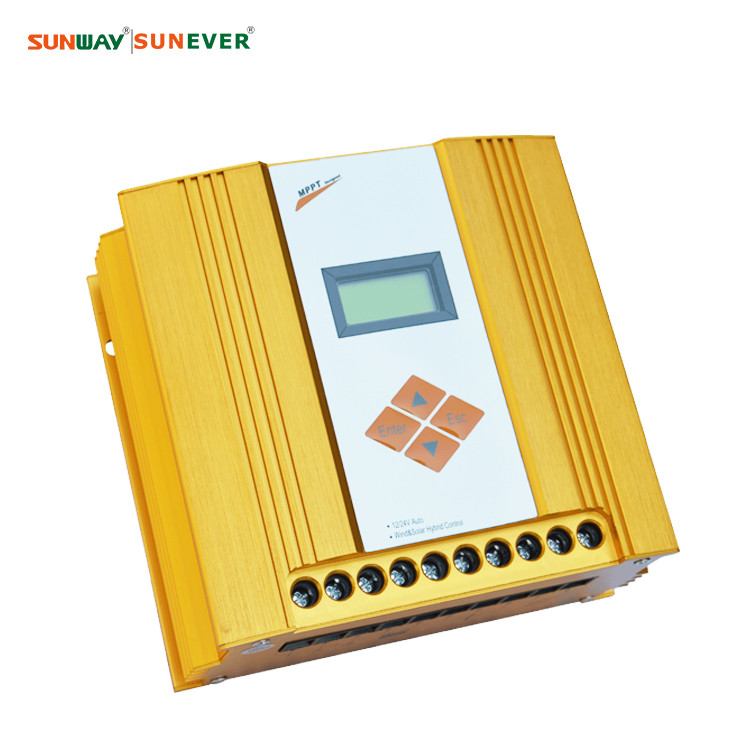

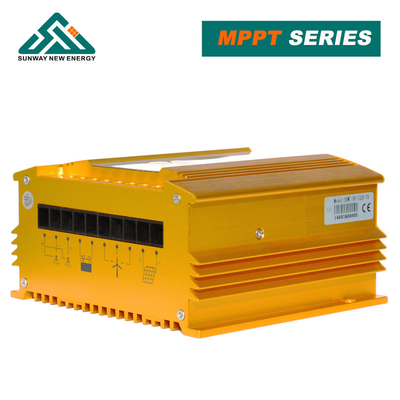

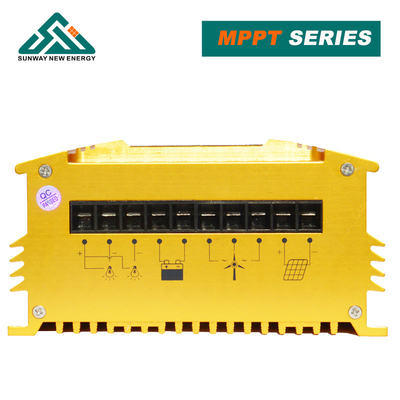

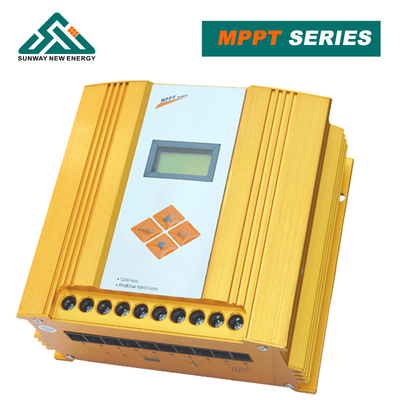

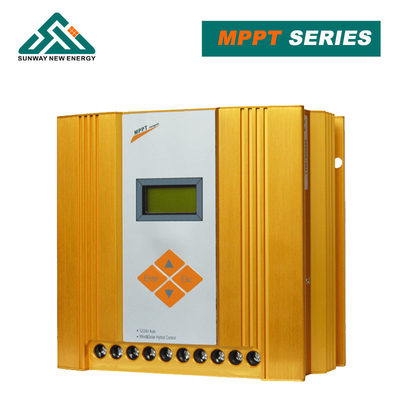

100W 300W 24v Wind Turbine Charge Controller Solar Power Charge Controller
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | SUNEVER |
| Model Number: | SSWC06-1224TA |
Payment & Shipping Terms:
| Price: | $70.00/pieces 1-49 pieces |
|---|---|
| Packaging Details: | carton box<br>low price top mptt solar charge controller 100W 200W 300W 400W 12V 24V wind solar mppt charge controller |
|
Detail Information |
|||
| Type: | MPPT, PWM | Certificate: | CE IEC |
|---|---|---|---|
| Warranty: | 12 Month | Work Time (h): | 24 |
| Rated Wind Power: | 200-800Watts | Rated Solar Power: | 100-600Watts |
| Battery Type: | Lead-acid/Lithium/LiFePO4 Battery | Rated Voltage: | 12/24v AUTO / 48v |
| Protection: | Short Circuit Overload Overvolt Overtemp | Function: | Boost Charge |
| DC Output: | 1 Or 2 Constant/ Street Light | Output Voltage: | 10-30V,changed According Battery |
| OEM: | Accepted | Self-consumption: | 5mA |
| Highlight: | 100W Wind Turbine Charge Controller,24v Solar Power Charge Controller,24v Wind Turbine Charge Controller |
||
Product Description
Boost Charge Function 100W 200W 300W 400W 12V 24V Wind Solar MPPT Charge Controller
DESCRIPTIONS:
MPPT Wind solar hybrid street-lighting controller is the firstly apply MPPT technology for the small power wind generator in china. With the application of this technology, the charge efficiency has vastly improved under the situation of low-wind, and obvious exceed the traditional PWM charging mode of 30%. Presently, we have solved such so technical problem on charging efficiency of the low-power wind generator already. Especially apply to the horizontal and vertical low-power wind generator of 100W to 600W. This type controller has strong compatibility and a great various protection functions, have more 10 years of application practice to improve performance continuously to make it has high reliable and stability. It can be used to the street lighting, monitoring system, outdoor advertisement, home type generation system etc.
|
Wind generator control set-up definition
|
|
|
|
|
Rated Wind Turbine Power (12V/24V)
|
100W-300W / 200W-600W (compatible)
|
|
|
|
Wind Turbine brake voltage (12V/24V)
|
15Vac / 30Vac
|
|
|
|
Wind Turbine brake current
|
23A
|
|
|
|
Solar panel set-up definition
|
|
|
|
|
PV max power (12v/24v)
|
150W / 300W
|
|
|
|
PV max charge current
|
12.5A
|
|
|
|
Warranty
|
Wind turbine:5 years; Solar panel 10 years; Battery:3 Years; Other parts: 13 Months
|
|
|
|
Battery management definition
|
|
|
|
|
Over-discharge Voltage (12v/24v)
|
10.5V /20.0V
|
|
|
|
(Over-discharge Recovery Voltage (12v/24v)
|
12.0V / 24.0V
|
|
|
|
Over-charge Voltage (12v/24v)
|
15.0V / 30.0V
|
|
|
|
Over-charge Recovery Voltage (12v/24v)
|
13.5V / 27.0V
|
|
|
|
Data-transfer port
|
RS232/485/wifi/GPRS
|
|
|
|
Dimension(W*L*H) [mm]
|
146X152X78
|
|
|
|
Net-weight[kg]
|
1.2
|
|
|
Package details
Q1:Are you a factory or trade company?
We are a factory who has more than 10 years experience in manufacturing; strong aftersale service team and technical support. Free design according to client requirements.
Q2:Whats the MOQ? We have stock and semi-finished products with enough base materials for new sampleand order for all models, So small quantity order is accepted, it can meet your require.ment very well.
Q3:Why others price much cheaper? We try our best to ensure our quality to be the best one in the same level price products. We believe safety and effectiveness are the most important.
Q4:Can I have a sample for testing?
Yes, you are welcome to test samples before quantity order; Sample order will be sentout 2-3 days generally.
Q5:Can Iadd my logo on the products?
Yes,OEM and ODM are available for us. But you should send us the Trademark authori-zation letter.
Q6 :Do you have inspection procedures?
100% self-inspection before packing.
