Hybrid 48V/96V Mppt Wind Controller Wind Charge Controller 12v
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | SUNEVER |
| Model Number: | SWC-3048VTA |
Payment & Shipping Terms:
| Price: | $285.00/pieces 1-9 pieces |
|---|
|
Detail Information |
|||
| Type: | PWM | Certificate: | CE |
|---|---|---|---|
| Warranty: | 12 Month | Work Time (h): | 24 Hours |
| Rated Power: | 1KW-5KW | Battery Type: | Lead-acid/Lithium/LiFePO4 Battery |
| Battery Voltage: | 48V-220VDC | Wind Turbine Voltage: | 48VAC-220VAC |
| Display: | LED Display | Color: | Blue/orange |
| Protection: | Overcurrent Overvoltage | Brake: | Dump Load |
| Control Mode: | Intelligent Control | Cooling Mode: | Cooling Fan |
| Highlight: | Hybrid Mppt Wind Controller,Hybrid Wind Charge Controller 12v,48V Mppt Wind Controller |
||
Product Description
1KW-5KW PWM Hybrid Solar Wind Charge Controller The Ultimate Solution for 24V/48V/96V

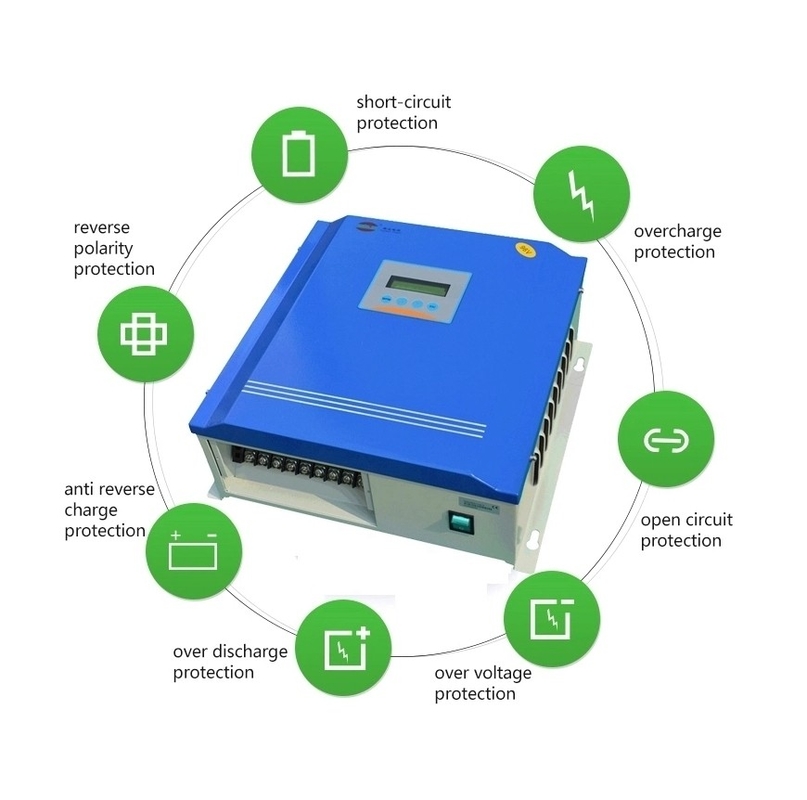

FEATURES:
1.) Control using common positive polarity way, double lines for solar array
2.) Digital design, module structure, high stability and reliability
3.) Wind-turbine brake setting with user-key be programmable
4.) LCD equipped (backlighting) to show parameters of system running status
5.) High efficiency with by PWM charging method
6.) Multi-protections such as anti-reverse connection, no charging reversely while night. And Over-charge, limited charging
current &voltage protections for battery
7.) User can adjust setting of battery management system(BMS) and charging controlling
8.) With alarm function in system abnormal status
9.) Equipped with data communication function (optional)
10.) Intelligent cooling system inset
2.) Digital design, module structure, high stability and reliability
3.) Wind-turbine brake setting with user-key be programmable
4.) LCD equipped (backlighting) to show parameters of system running status
5.) High efficiency with by PWM charging method
6.) Multi-protections such as anti-reverse connection, no charging reversely while night. And Over-charge, limited charging
current &voltage protections for battery
7.) User can adjust setting of battery management system(BMS) and charging controlling
8.) With alarm function in system abnormal status
9.) Equipped with data communication function (optional)
10.) Intelligent cooling system inset
|
Model
|
1KW/24V,48V
|
2KW/48V,96V
|
3KW/48V,96V
|
|||
|
Wind-turbine power[KW]
|
1
|
2
|
3
|
|||
|
Rated wind-turbine voltage[V]
|
28.8 ; 57.6 ; 115.2 ; 144; 288
|
|
|
|||
|
Rated battery voltage[V]
|
24 ; 48 ; 96 ; 120 ; 240
|
|
|
|||
|
Electrical parameters
|
|
|
|
|||
|
Consumption at standby [mA]
|
≤60
|
|
|
|||
|
Consumption at night [mA]
|
≤20
|
|
|
|||
|
Operating Temperature Range
|
-25ºC ~ +60ºC
|
|
|
|||
|
Cooling Method
|
Convection with double cooling fans
|
|
|
|||
|
Operating temperature
|
0%~98% Non-condensing
|
|
|
|||
|
Terminal
|
Barrier terminal
|
|
|
|||
|
Data-transfer port
|
RS485/232/WIFI/GPRS
|
|
|
|||
|
Mounting
|
Wall
|
|
|
|||
|
Main dimension(W*D*H)[mm]
|
380*355*150
|
|
|
|||
|
Main-device net weight [kg]
|
8.5
|
|
|
|||
|

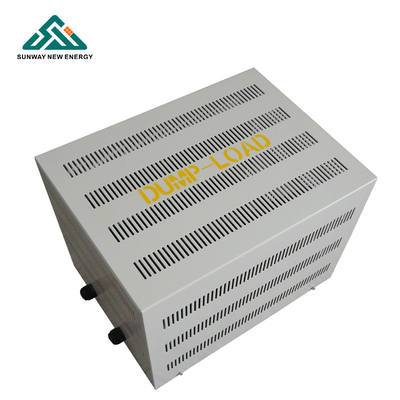

Dump dimension(W*D*H)[mm]
|
440*160*170
|
440*240*150
|
440*240*150
|
|||
|
Dump-load net weight [kg]
|
4
|
7
|
8.5
|
|||
Package details
Q1:Are you a factory or trade company?
We are a factory who has more than 10 years experience in manufacturing; strong aftersale service team and technical support. Free design according to client requirements.
Q2:Whats the MOQ? We have stock and semi-finished products with enough base materials for new sampleand order for all models, So small quantity order is accepted, it can meet your require.ment very well.
Q3:Why others price much cheaper? We try our best to ensure our quality to be the best one in the same level price products. We believe safety and effectiveness are the most important.
Q4:Can I have a sample for testing?
Yes, you are welcome to test samples before quantity order; Sample order will be sentout 2-3 days generally.
Q5:Can Iadd my logo on the products?
Yes,OEM and ODM are available for us. But you should send us the Trademark authori-zation letter.
Q6 :Do you have inspection procedures?
100% self-inspection before packing.
