Power range:300W-10KW for residential application
Blade: 3 pieces
Horizontal type with better efficiency
 |
10Kw Off Grid Wind Solar Hybrid Power System The Ultimate Choice for Renewable Energy
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | SUNEVER |
| Model Number: | SWW10S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100000 watts |
|---|---|
| Price: | $0.80/watts 100000-499999 watts |
|
Detail Information |
|||
| Application: | Home | Battery Type: | Lead-Acid |
|---|---|---|---|
| Output Voltage (V): | 230VAC/380VAC | Output Frequency: | 50HZ |
| Pre-sales Project Design: | YES | Rated Power: | 3Kw / 5KW / 10Kw |
| Generator Type: | 3 Phase AC Permanent-magnet | Rated Voltage: | 48V/96V/120V/220/380V |
| Controller: | Wind Solar Hybrid Controller | Blade Material: | Reinforced Glass Fiber |
| Wind Turbine Type: | Horizontal Wind Trubine | Inverter Type: | Pure Sine Wave Low Frequency |
| Battery: | Gel / Lifepo4 Battery | Pole Connection: | Flange |
| Support PV Panels: | Yes | ||
Product Description
What is wind solar hybrid power system?
It is a set of power generation application system. The system uses solar panels and wind power generators (converted AC power into DC power) to store the power energy from the battery pack. The DC electricity stored in the battery pack is transformed into AC power and sent to the user load through the transmission line. It is the two types of power generation equipment of wind turbines and solar panels
Brand | SUNEVER |
Wind power | 300W-10KW |
Solar power | 1KW-20KW |
Battery voltage | 24VDC-384VDC |
Controller mode | Wind solar hybrid type Or Seprated type depend on the configuration |
Battery type | Lithium battery or Lead acid gel battery |
Inverter tyoe | Low frequency pure sine wave output |
Warranty | Wind turbine:5 years; Solar panel 10 years; Battery:3 Years; Other parts: 13 Months |
A Grade Material

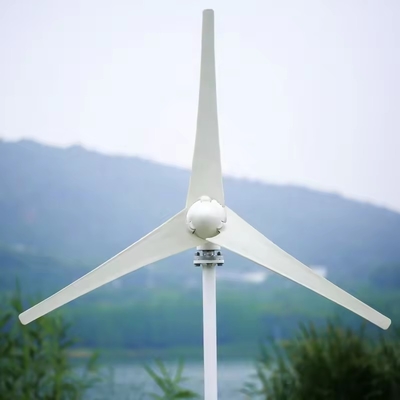

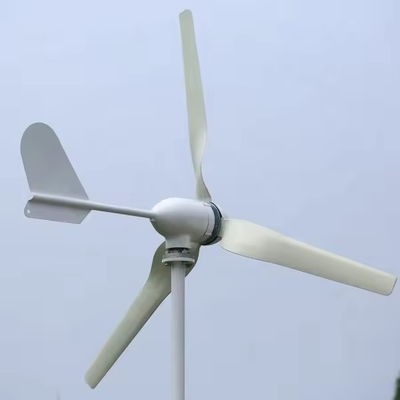

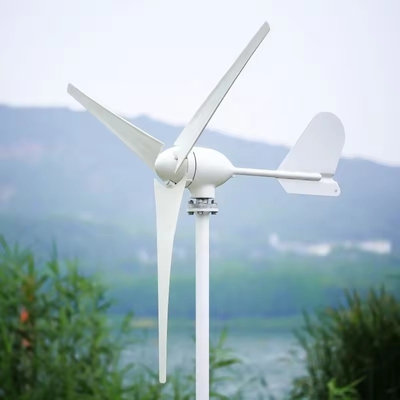

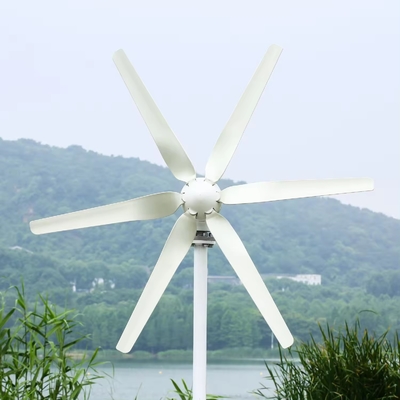

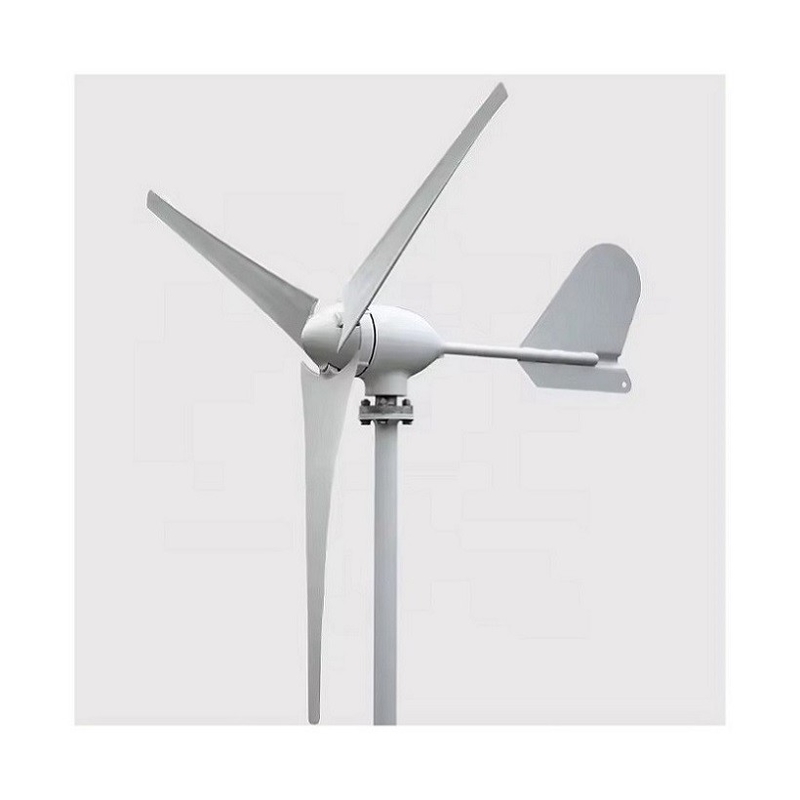

Wind turbine
Low voltage to high voltage output fit for any kind of battery bank voltage
Wind solar charge controller
PWM Charge method
With 1.5 times dump load cabinet
1KW-3KW for hybrid type
5Kw-10KW wind charge controller
1KW-10KW solar charge controller
24-384VDC battery bank voltage
Battery bank
12V 100-250AH Lead acid gel battery
48V-384V lithium battery bank
Off grid inverter
Single phase , Split phase, three phase can be selected.
24-384VDC battery bank voltage
Low frequency type
Pure sine wave output
Product Category
Company Profile
Package details
Q1:Are you a factory or trade company?
We are a factory who has more than 10 years experience in manufacturing; strong aftersale service team and technical support. Free design according to client requirements.
Q2:Whats the MOQ？ We have stock and semi-finished products with enough base materials for new sampleand order for all models, So small quantity order is accepted, it can meet your require.ment very well.
Q3:Why others price much cheaper? We try our best to ensure our quality to be the best one in the same level price products. We believe safety and effectiveness are the most important.
Q4:Can I have a sample for testing?
Yes, you are welcome to test samples before quantity order; Sample order will be sentout 2-3 days generally.
Q5:Can Iadd my logo on the products?
Yes,OEM and ODM are available for us. But you should send us the Trademark authori-zation letter.
Q6 :Do you have inspection procedures?
100% self-inspection before packing.
