Product Details:

Place of Origin: GUA
Brand Name: DEYE
Model Number: SUN-8K-SG01LP1-EU

Payment & Shipping Terms:

Price: $1,200.00/pieces 1-9 pieces
Packaging Details: carton box<br>The global sell solar inverter hybrid 10kw 40v 60v inverter solar pure sine wave
Supply Ability: 600 Kilowatt/Kilowatts per Month
Get Best Price Contact Now

Detail Information
Input Voltage: 125-425V Output Voltage: 230VAC ± 5%
Output Current: 120a Output Frequency: 50Hz/60Hz
Output Type: Single, Pure Sine Wave Size: 420*670*233mm
Type: DC/AC Inverters Inverter Efficiency: 98%
Certificate: VDE 0126,AS4777,NRS2017,G98,G99 Warranty: 5Years
Weight: 33 Product Name: Hybrid Solar Inverter
Brand: DEYE/GROWATTS Battery Type: Lead Acid \ Lithium \ Gel
Inverter Type: Hybrid Power Inverter Battery Voltage: 40~60V
Communication: RS485/CAN Rated Power: 3.5KW/5KW/6KW/8KW
Peak Power: 2 Times MPPT Range @ Operating Voltage: 150-450 VDC
Maximum PV Array Power: 10kw Port: Ningbo Shanghai
Highlight:

High Efficiency 3 Phase Pv Inverter

,

High Efficiency three phase solar inverter

,

450 VDC 3 Phase Pv Inverter

Product Description

10kw 40v 60v Solar Inverter Hybrid with Lead Acid Battery and 98% Inverter Efficiency



High Efficiency 3 Phase Pv Inverter With Lead Acid Battery 450 VDC 0

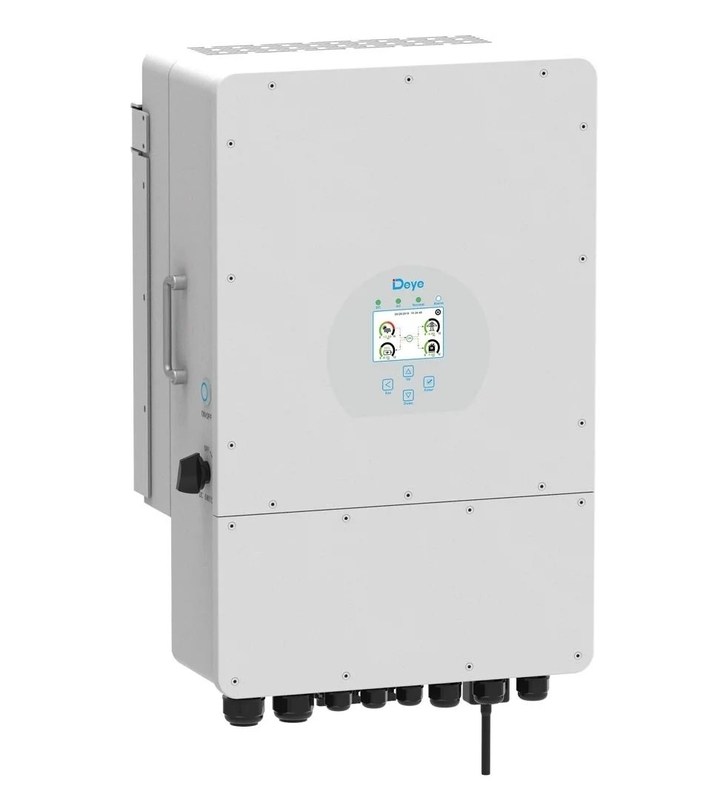

Deye hybrid solar inverter SUN-5K/6K/7K/8K-SG01LP1-EU is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operate on such as battery charging, AC/solar charging, and acceptable input voltage based on different applications.
High Efficiency 3 Phase Pv Inverter With Lead Acid Battery 450 VDC 1
High Efficiency 3 Phase Pv Inverter With Lead Acid Battery 450 VDC 2
SUN-5K/6K/7K/8K-SG01LP1-EU
1. Colorful touch LCD, IP65 protection degree 2. 6 time periods for battery charging/discharging
3. Max. charging/discharging
current of 120A
4. Frequency droop control, Max.16pcs parallel
5. DC couple and AC couple to retrofit existing solar system
6.Support storing energy from diesel generator 7. 48V low voltage battery, safe and reliable
8. Unique Smart Load application and
Grid peak shaving function
9. 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency airconditioner works well
Model
SUN-5K-SG01LP1
SUN-6K-SG01LP1
SUN-7.6K-SG01LP1
SUN-8K-SG01LP1
Battery Input Data




Battery Type
Lead-acid or Lithium-ion



Battery Voltage Range (V)
40~60V



Max. Charging Current (A)
120A
135A
190A

Max. Discharging Current (A)
120A
135A
190A

Charging Curve
3 Stages / Equalization



External Temperature Sensor
Optional



Charging Strategy for Li-Ion Battery
Self-adaption to BMS



PV String Input Data




Max. DC Input Power (W)
6500W
7800W
9880W
10400W
PV Input Voltage (V)
370V (100V~500V)



MPPT Range (V)
125V-425V



Start-up Voltage (V)
150V



PV Input Current (A)
13A+13A
26A+13A
26A+26A

No.of MPPT Trackers
2



No.of Strings Per MPPT Tracker
1+1
2+1
2+2

AC Output Data




Rated AC Output and UPS Power (W)
5000W
6000W
7600W
8000W
Max. AC Output Power (W)
5500W
6600W
8360W
8800W
Peak Power (off grid)
2 times of rated power, 10 S



AC Output Rated Current (A)
20.8A
25A
31.7A / 33A
33.4A / 35A
Max. AC Current (A)
22.9A
27.5A
34.9A / 36.3A
36.7A / 38.5A
Max. Continuous AC Passthrough (A)
35A
40A
50A

Output Frequency and Voltage
50 / 60Hz;230Vac (single phase)



Grid Type
Single Phase



Current Harmonic Distortion
THD<3%(Linear load<1.5%)



Efficiency




Max. Efficiency
97.60%



Euro Efficiency
97.00%



MPPT Efficiency
99.90%



Protection




Integrated
PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor
Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge protection



Output Over Voltage Protection
DC Type II / AC Type II



Certifications and Standards




Grid Regulation
VDE 0126,AS4777,NRS2017,G98,G99,IEC61683,IEC62116,IEC61727



Safety Regulation
IEC62109-1, IEC62109-2



EMC
EN61000-6-1, EN61000-6-3



General Data




Operating Temperature Range (℃)
-25~60℃, >45℃ Derating



Cooling
Fan



Noise (dB)
<30



Communication with BMS
RS485; CAN



Weight (kg)
32



Size (mm)
670×420×233mm



Protection Degree
IP65



Installation Style
Wall-mounted



Warranty
5 years



High Efficiency 3 Phase Pv Inverter With Lead Acid Battery 450 VDC 3
System Architechture
High Efficiency 3 Phase Pv Inverter With Lead Acid Battery 450 VDC 4
High Efficiency 3 Phase Pv Inverter With Lead Acid Battery 450 VDC 5



The following illustration shows basic application of this inverter. It also includes following devices to have a Complete running system.
- Generator or Utility
- PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as
refrigerator and air conditioner.
High Efficiency 3 Phase Pv Inverter With Lead Acid Battery 450 VDC 6
High Efficiency 3 Phase Pv Inverter With Lead Acid Battery 450 VDC 7
High Efficiency 3 Phase Pv Inverter With Lead Acid Battery 450 VDC 8
High Efficiency 3 Phase Pv Inverter With Lead Acid Battery 450 VDC 9
High Efficiency 3 Phase Pv Inverter With Lead Acid Battery 450 VDC 10
High Efficiency 3 Phase Pv Inverter With Lead Acid Battery 450 VDC 11
High Efficiency 3 Phase Pv Inverter With Lead Acid Battery 450 VDC 12
High Efficiency 3 Phase Pv Inverter With Lead Acid Battery 450 VDC 13



Package details

High Efficiency 3 Phase Pv Inverter With Lead Acid Battery 450 VDC 14



PROJECT CASE

High Efficiency 3 Phase Pv Inverter With Lead Acid Battery 450 VDC 15
High Efficiency 3 Phase Pv Inverter With Lead Acid Battery 450 VDC 16
High Efficiency 3 Phase Pv Inverter With Lead Acid Battery 450 VDC 17
Q1:This brand can be selected?
Yes, we have DEYE, GROWATTS,MEGAREVO etc brand can be seleteted.
Q2:Whats the MOQ? We have stock and semi-finished products with enough base materials for new sampleand order for all models, So small quantity order is accepted, it can meet your require.ment very well.
Q3:Why others price much cheaper? We try our best to ensure our quality to be the best one in the same level price products. We believe safety and effectiveness are the most important.
Q4:Can I have a sample for testing?
Yes, you are welcome to test samples before quantity order; Sample order will be sentout 2-3 days generally.
Q5:Can Iadd my logo on the products?
Yes,OEM and ODM are available for us. But you should send us the Trademark authori-zation letter.
Q6 :Do you have inspection procedures?
100% self-inspection before packing.
