Product Details:

Place of Origin: GUA
Brand Name: DEYE
Model Number: SUN-8/10/12K-SG04LP3-EU

Payment & Shipping Terms:

Minimum Order Quantity: 5 pieces
Price: $1,500.00/pieces 5-19 pieces
Packaging Details: carton box<br>Modern design three phase dc ac inverter hybrid solar inverter 10kw home inverter
Supply Ability: 600 Kilowatt/Kilowatts per Month
Get Best Price Contact Now

Detail Information
Input Voltage: 125-425V Output Voltage: 380VAC ± 5%
Output Current: 120a Output Frequency: 50Hz/60Hz
Output Type: Three Phase, Pure Sine Wave Size: 420*670*233mm
Type: DC/AC Inverters Inverter Efficiency: 98%
Certificate: VDE 0126,AS4777,NRS2017,G98,G99 Warranty: 5Years
Weight: 33 Product Name: Hybrid Solar Inverter
Brand: DEYE Battery Type: Lead Acid \ Lithium \ Gel
Inverter Type: Hybrid Power Inverter Battery Voltage: 40~60V
Communication: RS485/CAN Rated Power: 8/10/12Kw
Peak Power: 2 Times MPPT Range @ Operating Voltage: 150-450 VDC
Maximum PV Array Power: 8/10/12Kw
Highlight:

8000W All In One Inverter

,

8000W Solar Power Inverter For Home

,

60V All In One Inverter

Product Description

8000W Solar Hybrid Inverter 40V 60V with VDE 0126 Certificate and RS485/CAN Communication



8000W 60V All In One Inverter Solar Power Inverter For Home Hybrid 0

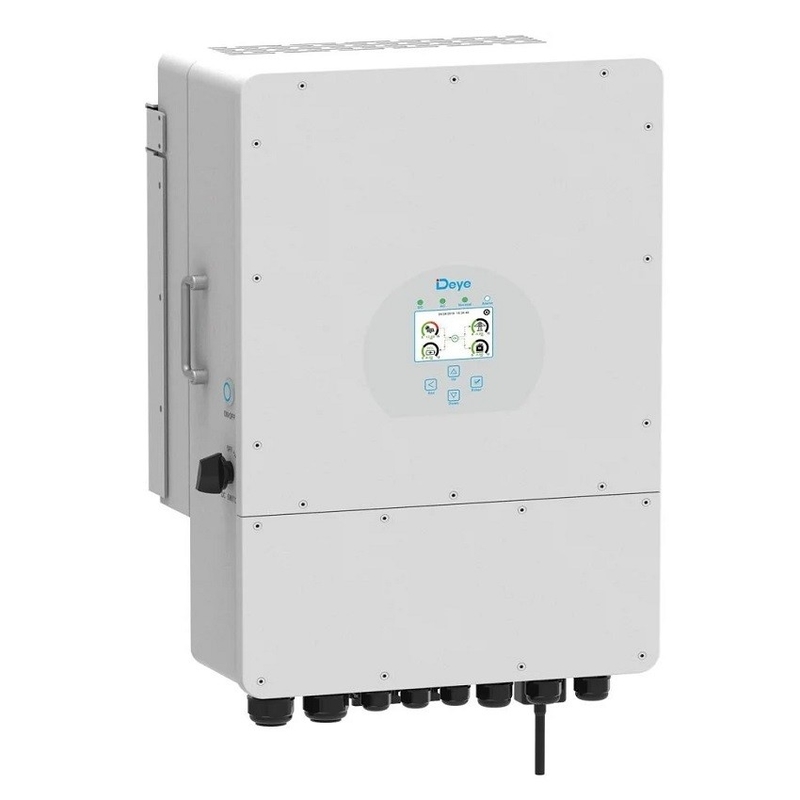

Deye hybrid solar inverter SUN-8/10/12K-SG04LP3-EU is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operate on such as battery charging, AC/solar charging, and acceptable input voltage based on different applications.
8000W 60V All In One Inverter Solar Power Inverter For Home Hybrid 1
8000W 60V All In One Inverter Solar Power Inverter For Home Hybrid 2
SUN-8/10/12K-SG04LP3-EU
1. Colorful touch LCD, IP65 protection degree 2. 6 time periods for battery charging/discharging
3. Max. charging/discharging
current of 240A
4. Frequency droop control, Max.16pcs parallel
5. DC couple and AC couple to retrofit existing solar system
6.Support storing energy from diesel generator 7. 48V low voltage battery, safe and reliable
8. Unique Smart Load application and
Grid peak shaving function
9. 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency airconditioner works well
Model
SUN-6K-SG04LP3-EU
SUN-8K-SG04LP3-EU
SUN-10K-SG04LP3-EU
SUN-12K-SG04LP3-EU
Battery Input Data




Battery Type
Lead-acid or Lithium-ion



Battery Voltage Range (V)
40~60V



Max. Charging Current (A)
150
190
210
240
Max. Discharging Current (A)
150
190
210
240
External Temperature Sensor
Optional



Charging Strategy for Li-Ion Battery
Self-adaption to BMS



PV String Input Data




Max. DC Input Power (W)
7800
10400
13000
15600
PV Input Voltage (V)
550 (160~800)



MPPT Range (V)
350-650



Start-up Voltage (V)
160



PV Input Current (A)
17+17
26A+13A
34+17

No.of MPPT Trackers
2



No.of Strings Per MPPT Tracker
1

2+1
2+2

AC Output Data




Rated AC Output and UPS Power (W)
6000
8000
10000
12000
Max. AC Output Power (W)
6600
8800
11000
13200
Peak Power (off grid)
2 times of rated power, 10 S



AC Output Rated Current (A)
9.1/8.7
12.1/11.6
15.2/14.5
18.2/17.4
Max. Continuous AC Passthrough (A)
35A
40A
50A

Output Frequency and Voltage
50/60Hz; 3L/N/PE 220/380, 230/400Vac



Grid Type
Three phase



Current Harmonic Distortion
THD<3%(Linear load<1.5%)



Efficiency




Max. Efficiency
97.60%



Euro Efficiency
97.00%



MPPT Efficiency
99.90%



Protection




Integrated
PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor
Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge protection



Output Over Voltage Protection
DC Type II / AC Type II



Certifications and Standards




Grid Regulation
VDE 0126,AS4777,NRS2017,G98,G99,IEC61683,IEC62116,IEC61727



Safety Regulation
IEC62109-1, IEC62109-2



EMC
EN61000-6-1, EN61000-6-3



General Data




Operating Temperature Range (℃)
-25~60℃, >45℃ Derating



Cooling
Fan



Noise (dB)
<30



Communication with BMS
RS485; CAN



Weight (kg)
33.6



Size (mm)
670×420×233mm



Protection Degree
IP65



Installation Style
Wall-mounted



Warranty
5 years



8000W 60V All In One Inverter Solar Power Inverter For Home Hybrid 3
System Architechture
8000W 60V All In One Inverter Solar Power Inverter For Home Hybrid 4
8000W 60V All In One Inverter Solar Power Inverter For Home Hybrid 5



The following illustration shows basic application of this inverter. It also includes following devices to have a Complete running system.
- Generator or Utility
- PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as
refrigerator and air conditioner.
8000W 60V All In One Inverter Solar Power Inverter For Home Hybrid 6
8000W 60V All In One Inverter Solar Power Inverter For Home Hybrid 7
8000W 60V All In One Inverter Solar Power Inverter For Home Hybrid 8
8000W 60V All In One Inverter Solar Power Inverter For Home Hybrid 9
8000W 60V All In One Inverter Solar Power Inverter For Home Hybrid 10
8000W 60V All In One Inverter Solar Power Inverter For Home Hybrid 11
8000W 60V All In One Inverter Solar Power Inverter For Home Hybrid 12
8000W 60V All In One Inverter Solar Power Inverter For Home Hybrid 13



Package details

8000W 60V All In One Inverter Solar Power Inverter For Home Hybrid 14



PROJECT CASE

8000W 60V All In One Inverter Solar Power Inverter For Home Hybrid 15
8000W 60V All In One Inverter Solar Power Inverter For Home Hybrid 16
8000W 60V All In One Inverter Solar Power Inverter For Home Hybrid 17
Q1:This brand can be selected?
Yes, we have DEYE, GROWATTS,MEGAREVO etc brand can be seleteted.
Q2:Whats the MOQ? We have stock and semi-finished products with enough base materials for new sampleand order for all models, So small quantity order is accepted, it can meet your require.ment very well.
Q3:Why others price much cheaper? We try our best to ensure our quality to be the best one in the same level price products. We believe safety and effectiveness are the most important.
Q4:Can I have a sample for testing?
Yes, you are welcome to test samples before quantity order; Sample order will be sentout 2-3 days generally.
Q5:Can Iadd my logo on the products?
Yes,OEM and ODM are available for us. But you should send us the Trademark authori-zation letter.
Q6 :Do you have inspection procedures?
100% self-inspection before packing.
